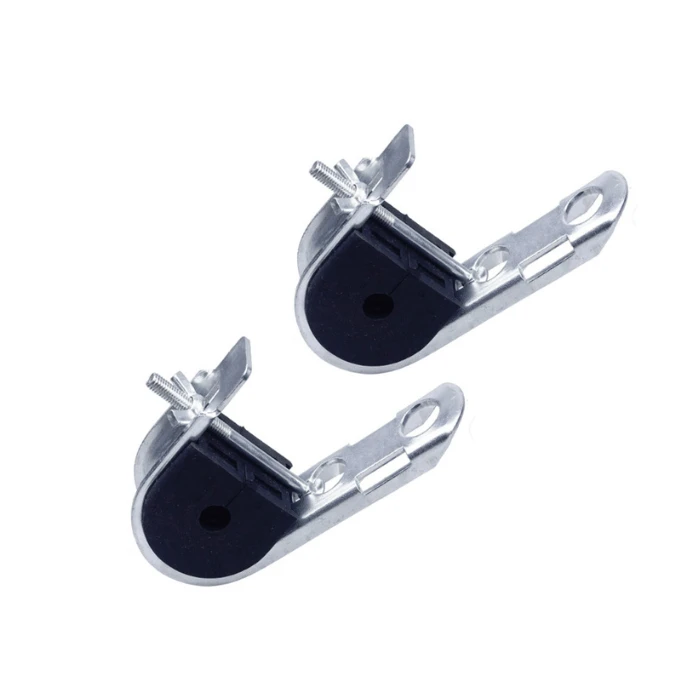

Technical Specifications
| Parameter Category | Specification | Notes |
|---|---|---|
| Vertical Static Load | 200 N (20.4 kgf) | Tested per ASTM D4565 standard |
| Horizontal Lateral Load | 80 N (8.2 kgf) | Recommended working load, safety factor ≥3 |
| Dynamic Impact Load | 150 N | Simulates wind and ice/snow loads |
| Cable Diameter | 4 - 14 mm | Self-adaptive through elastic clamping |
| Typical Applications |
|
Confirm cable OD within range |
| Product Length | 95 mm ± 2 mm | |
| J-Hook Opening | 15 mm | Fits M12-M16 bolts or Φ10-16mm guy wires |
| Cable Cavity Width | 18 mm | |
| Unit Weight | 25 g ± 3 g | Lightweight design reduces pole load |
| Primary Material | HDPE or PA66 | Flame rating UL94 V-2 |
| UV Resistance Grade | UV8 (per ISO 4892) | 2000-hour accelerated aging test |
| Color Options | Black (standard), Gray, White | Custom RAL colors available (MOQ ≥5,000 pcs) |
| Operating Temperature | -40°C ~ +70°C | Covers 99% of global climate conditions |
| Storage Temperature | -50°C ~ +80°C | |
| Humidity Range | 0 - 100% RH | Waterproof and moisture-proof design |
| Wind Resistance | Wind speed ≤40 m/s | Category 14 typhoon |
| Quality System | ISO 9001:2015 | |
| Environmental Certification | RoHS, REACH | |
| Flame Standard | UL94 V-2 | |
| Testing Standards | IEC 60794, ASTM D4565 | Cable and mechanical performance testing |
| Recommended Span | ≤ 0.5 m (dense) / ≤ 1.0 m (regular) | Adjust based on cable weight and wind load |
| Minimum Bending Radius | ≥ 30 mm | Protects fiber from micro-bending loss |
| Installation Tools | Tool-free (manual installation) | Optional installation pliers for efficiency |
Product Features
Rapid Deployment
Cable Protection
Weather Resistance
Load Bearing
Color-Coded Identification System
Environmental

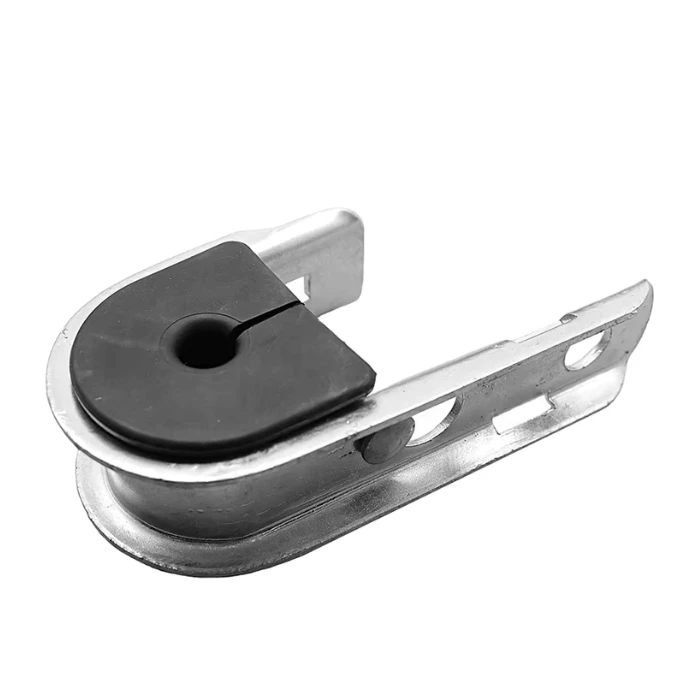

Intuitive Installation System - Zero-Tool Rapid Deployment
Featuring patented snap-lock structure, cables automatically lock once inserted, with installation taking just 5 seconds. The J-hook design is compatible with various fixing points (bolts, steel strands, guy wires, etc.), eliminating the tedious process of traditional cable tie installation, particularly suitable for aerial work and large-scale deployment scenarios.
Tool-free installation reduces equipment requirements
Patented snap-lock structure for secure cable fixation
Compatible with various fixing points (bolts, steel strands, guy wires)
Single-person operation improves efficiency by 60%
Intelligent Cable Protection Mechanism
Internal cavity features smooth arc transition design with minimum bending radius ≥30mm, compliant with fiber mechanical performance standards. Elastic clamping force is evenly distributed, preventing localized stress concentration that could cause cable sheath damage or increased fiber micro-bending loss.
Smooth arc transition design with minimum bending radius ≥30mm
Evenly distributed elastic clamping force prevents stress concentration
Compliant with ITU-T G.652 fiber mechanical performance standards
Prevents cable sheath damage and fiber micro-bending loss
Industrial-Grade Materials & Weather Resistance
Manufactured from High-Density Polyethylene (HDPE) or Polyamide (PA66) materials with UV stabilizers and antioxidants. Passes IEC 60068-2-14 environmental testing, maintaining mechanical strength in salt spray, acid rain, and UV exposure conditions without degradation over 15-year service life.
High-Density Polyethylene (HDPE) or Polyamide (PA66) construction
UV stabilizers and antioxidants for long-term durability
Withstands temperatures from -40°C to +70°C
15-year service life with minimal degradation

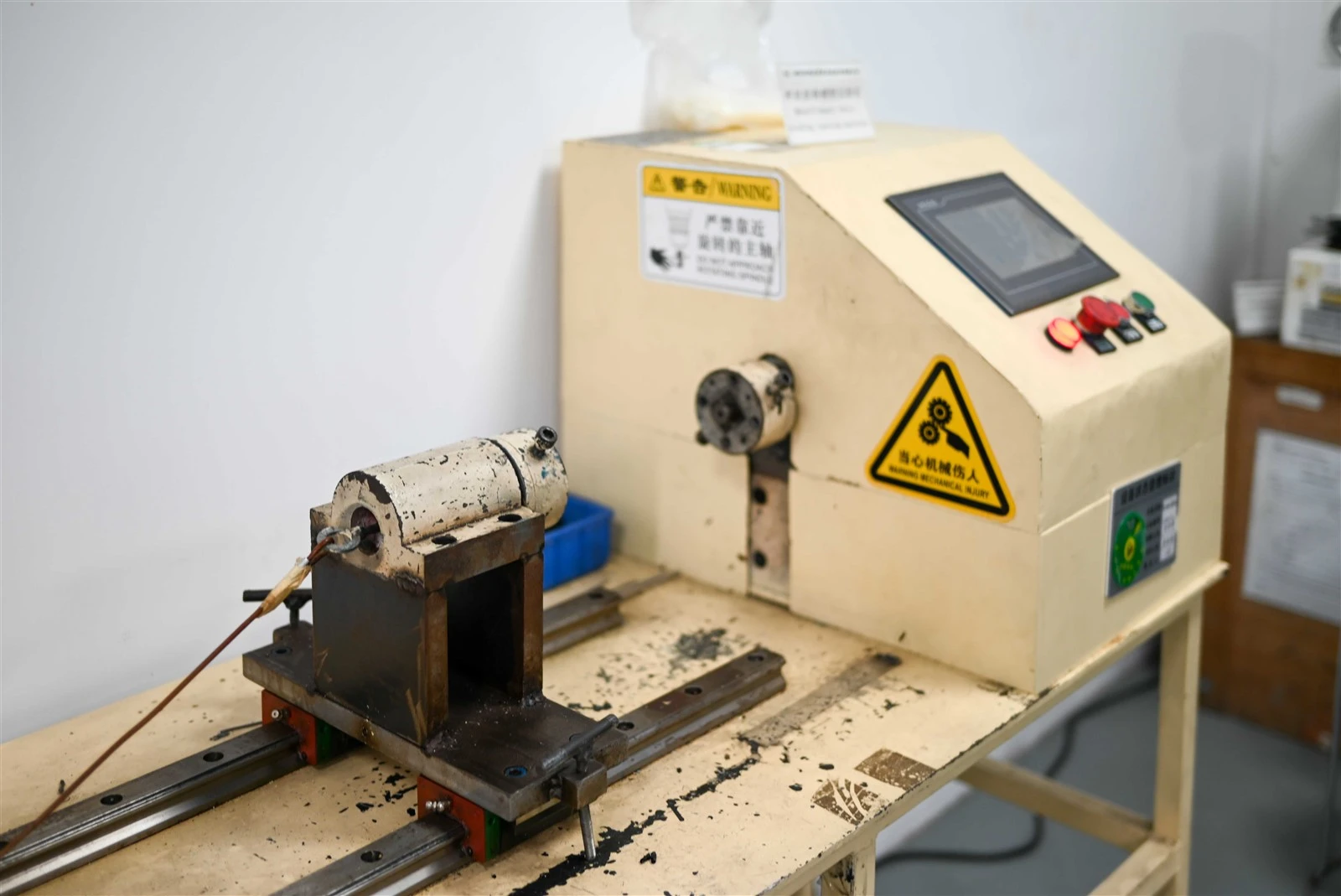

Precision Load Bearing & Safety Margins
Produced under ISO 9001 certified quality management system with batch destructive testing. Vertical static load capacity 200N (approximately 20kg), dynamic impact load 150N, safety factor ≥3, meeting dynamic conditions including strong winds, ice/snow loads, and cable thermal expansion/contraction.
- Vertical static load capacity: 200N (20.4 kgf)
- Horizontal lateral load: 80N (8.2 kgf)
- Dynamic impact load: 150N
- Safety factor ≥3 for all load types
Color-Coded Identification System
Available in black, gray, white, and other color options with custom color support based on project requirements. Facilitates differentiation of various operator lines, service types (broadband/telephone/surveillance), or construction phase marking, improving network management efficiency.
- Standard colors: Black, Gray, White
- Custom RAL colors available (MOQ ≥5,000 pcs)
- Color-coding for operator lines, service types, or construction phases
- Improves network management and maintenance efficiency
Environmental & Recyclable Characteristics
100% recyclable polymer materials compliant with RoHS directives and REACH regulations. Products can be recycled at end of life cycle, supporting green infrastructure development.
- 100% recyclable polymer materials
- Compliant with RoHS directives
- Compliant with REACH regulations
- Supports green infrastructure development
Model Selection Guide
JH-0408-BK
Cable Diameter:4 - 8 mm
Color:Black
Weight:22 g
Application:FTTH drop cables
JH-0812-BK
Cable Diameter:8 - 12 mm
Color:Black
Weight:25 g
Application:Aerial cables up to 12 cores
JH-0814-BK
Cable Diameter:8 - 14 mm
Color:Black
Weight:28 g
Application:ADSS cables
JH-0812-GY
Cable Diameter:8 - 12 mm
Color:Gray
Weight:25 g
Application:Commercial areas
Need help selecting the right model?
Our technical team can assist you in choosing the perfect J Hook Suspension Clamp for your specific application.
Application Scenarios
FTTH Fiber-to-the-Home Deployments
Suitable for last-mile fiber-to-premises scenarios, suspending drop cables along building facades, utility poles, or perimeter walls. J-hooks quickly mount on wall bolts or guy wires, enabling aesthetic cable routing from distribution boxes to customer premises.
Environmental Requirements:
• Indoor/outdoor environments
• Temperature -20°C to +50°C
• Relative humidity ≤95%
Aerial Fiber Optic Network Expansion
Used for aerial fiber optic trunk and branch line installation in urban, suburban, and rural areas. Works with utility poles, concrete poles, or steel poles using guy wires, pole bands, and other fixing points to reliably suspend ADSS cables and central tube fiber cables.
Environmental Requirements:
• Outdoor environment
• Wind resistance ≤Category 14
• Ice/snow loads require span verification
Rapid Temporary Communication Line Deployment
Suitable for emergency communications, event support, and temporary construction site networks. Tool-free installation enables rapid line deployment by construction personnel, with easy removal after project completion and clamp reusability.
Environmental Requirements:
• Short-term use (≤6 months)
• Long-term aging not critical
Environmental Compatibility
| Environmental Factor | Compatibility | Notes |
|---|---|---|
| Temperature | -40°C ~ +70°C | Global coverage from arctic to tropical climates |
| Humidity | 0 ~ 100% RH | Waterproof/moisture-proof, suitable for coastal areas |
| UV Radiation | High UV environments | High-altitude regions recommend -UV10 enhanced version |
| Salt Spray | 3% NaCl 500h | Usable within 5km of coast, near-shore requires enhanced inspection |
| Wind Load | ≤40 m/s | Typhoon regions require span reduction to 0.4m |
| Ice/Snow | 10mm ice accumulation | Verify load bearing based on local meteorological data |
Industry Case Studies
Rural Broadband Expansion
Texas, USA
Urban Network Rollout
Melbourne, Australia
Wind Farm Communication
Scotland, UK
Smart City Deployment
Dubai, UAE
DIMI Case Study: Rural Broadband Expansion
Project Background
In 2023, a regional telecom operator launched a rural broadband initiative covering 45 townships across West Texas, requiring installation of 850 miles of aerial fiber optic cables. The project demanded rapid deployment (8-month completion) across challenging terrain with irregular utility pole spacing and extreme temperature variations (-15°C to +45°C).
Product Application
Deployed 38,000 units of JH-0812-BK J Hook Suspension Clamps with 12-core loose tube aerial fiber cables. Installation crews leveraged tool-free installation capabilities to rapidly mount clamps on utility pole guy wires, achieving average installation time of 7 seconds per mounting point.
Featured Case Study: Rural Broadband Expansion
Problems Solved
Traditional cable tie methods required carrying scissors and tensioning tools, creating hazards during aerial work
Cable ties deteriorate under intense UV exposure, requiring replacement every 2-3 years
Emergency repair scenarios found cable tie removal difficult
Project Outcomes
Project completed 1.5 months ahead of schedule with 62% construction efficiency improvement
Cumulative labor cost savings of approximately $52,000 (calculated at 12 seconds saved per mounting point)
After 20 months of operation, inspection revealed zero mounting point failures or cable damage incidents
Customer satisfaction survey: 97.3% of subscribers rated fiber installation as "clean and professional"
Customer Reviews
Klaus M.
Network Engineering Manager, Vodafone Germany
James T.
Field Installation Supervisor, BT Openreach UK
Rachel K.
Procurement Specialist, Telstra Australia
Ready to Improve Your Fiber Installation Efficiency?
The J Hook Suspension Clamp is the ideal solution for rapid, reliable, and cost-effective aerial fiber optic cable installation. With tool-free deployment, exceptional durability, and versatile applications, it's the smart choice for your next project.
