Products - China MPO/MPT Fiber Optic Cable Manufacturers Suppliers Factory

Comprehensive Fiber Optic Cable Assembly Solutions

Engineering Excellence for Modern Network Infrastructure

DiMi: Precision Fiber Optic Solutions for a Digital World
As the demand for high-bandwidth communication networks grows, the quality of fiber optic cable assemblies is critical to success. Whether for FTTH deployments, data center interconnects, or industrial applications, DiMi delivers high-performance, reliable solutions that minimize signal loss and ensure long-term network integrity.

Expertise in Custom Fiber Assemblies
With decades of experience and advanced manufacturing technology, DiMi specializes in customized fiber optic solutions tailored to your unique needs. From next-gen passive optical networks (PON) to cloud infrastructure scaling, our components meet the highest industry standards, ensuring precision, efficiency, and reliability.

Certified Quality & Future-Proof Solutions
DiMi offers OEM/ODM capabilities with products backed by global certifications for performance and safety. Choose DiMi for fiber assemblies that support your current needs and future-proof your network for evolving digital demands.

Contact now

DIMI Products

Fiber Optic Cable Hardware
Fiber Optic Cable Hardware Custom Solutions for Modern Network Infrastructure Send Inquiry Now DIMI’s Engineering Strengt

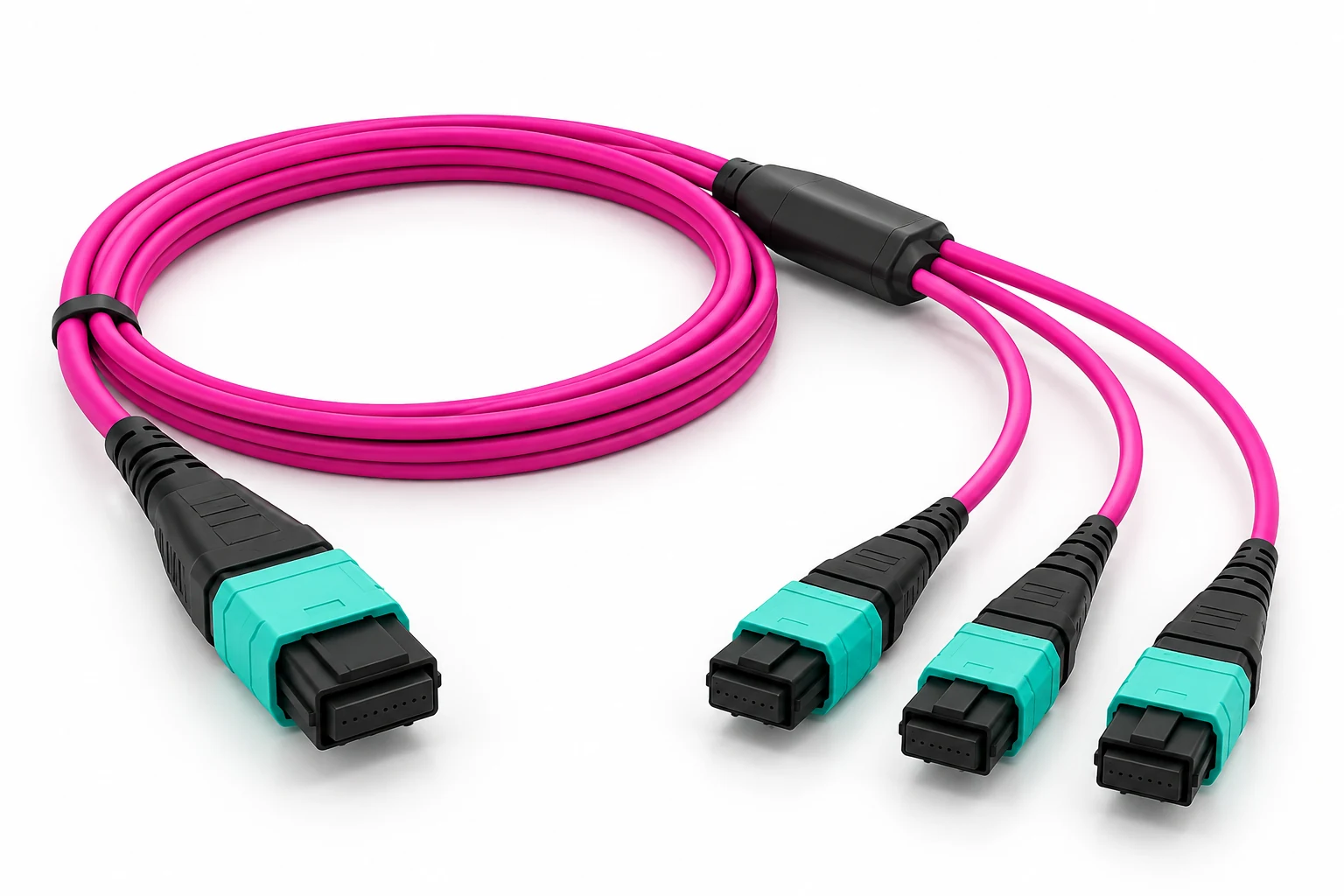

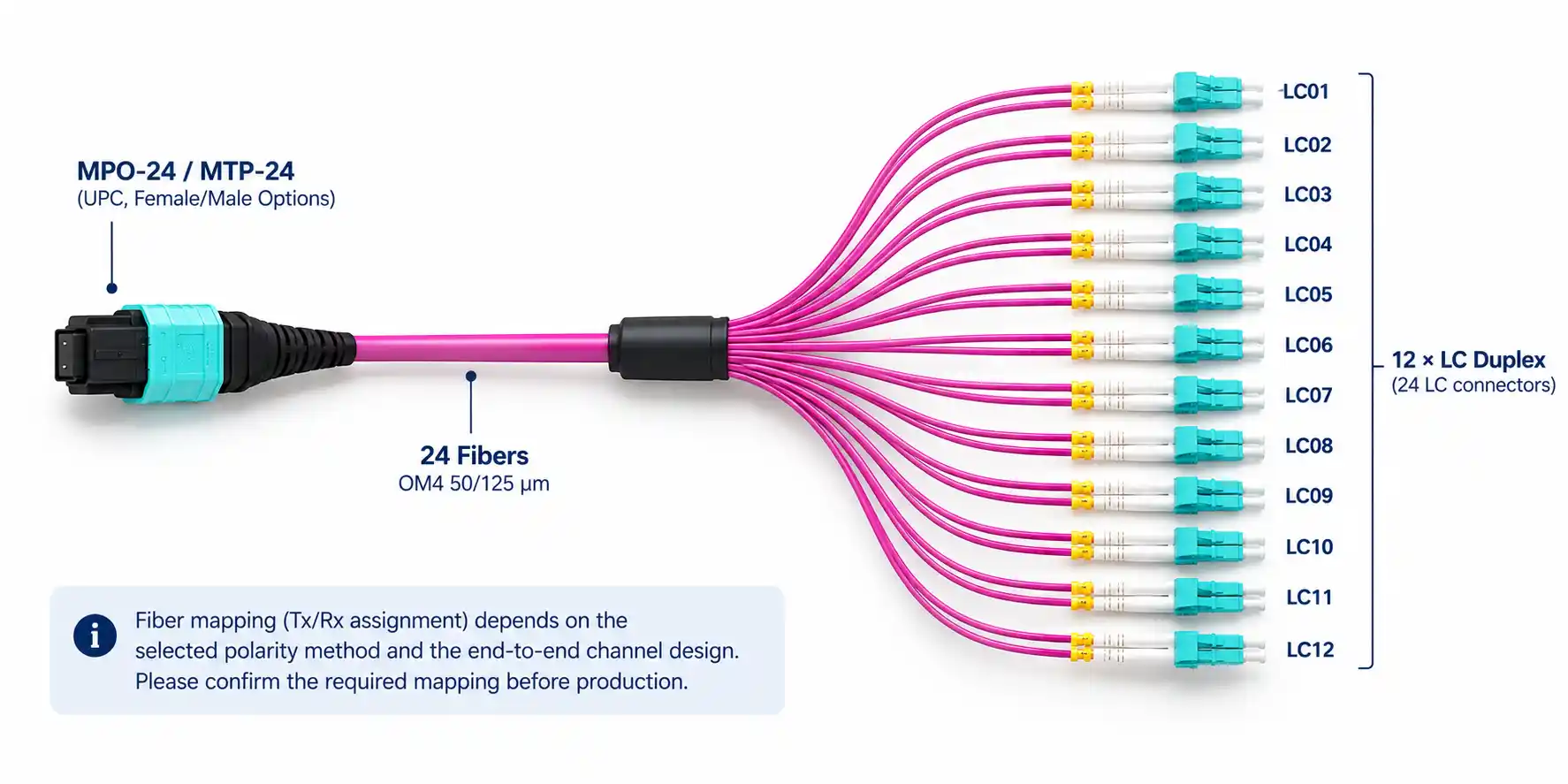

MPO/MPT Fiber Optic Cable
MPO/MPT Cables Revolutionizing High-Density Fiber Optic Connectivity Send Inquiry Now DIMI’s Expertise in High-Density MP
Fiber Optic Adapter
Fiber Optic Adapters DIMI Professional Solutions for Modern Network Infrastructure Send Inquiry Now In today's hyper-connec
Fiber Optic Splitter
DIMI Fiber Optic Splitters DIMI Advanced Solutions for Modern Network Infrastructure Send Inquiry Now In today's
Fiber Optic Box
DIMI Fiber Optic Box Solutions Maximizing Network Performance and Reliability Send Inquiry Now DIMI’s Engineering Str
Fiber Optic Connectors
DIMI Fiber Optic Connector From Technical Specs to Real-World Applications Send Inquiry Now Choosing fiber optic conn
Fiber Pigtail
DIMI Fiber Pigtail Solutions Maximizing Network Performance Across Industries Send Inquiry Now Understanding the Critical Role
Fiber Optic Cable Patch Cord
DIMI Fiber Optic Cable Patch Cord Solutions for Modern Network Infrastructure Send Inquiry Now In today's hyper-connected w

Understanding Fiber Optic Cable Assembly Components and Their Critical Applications

Fiber Optic Pigtails and Patch Cords

DiMi Fiber Optic Pigtails and Patch Cords: Reliable Connectivity
DiMi's fiber optic pigtails and patch cords provide low-loss, high-performance connections for telecom, data center, and enterprise networks. Designed for optimal signal integrity and durability, they ensure reliable performance in critical applications.

Custom Solutions for Your Needs
We offer fully customizable pigtails and patch cords, including fiber counts, lengths, connector types (SC, LC, MTP/MPO), and jacket materials (LSZH, OFNP) to match your project requirements.

Tested Quality and Performance
Built to meet international standards and rigorously tested, DiMi's products deliver secure, high-performance connections that ensure long-term network reliability.

Fiber Optic Pigtails

DiMi Fiber Optic Pigtails: Precision and Reliability for Critical Network Terminations
DiMi's fiber optic pigtails are factory-terminated cable assemblies, designed with a connector on one end and exposed fiber on the other for fusion or mechanical splicing. These pigtails are essential in network termination points, bridging trunk cables to active equipment, patch panels, or splice closures.

Superior Performance and Low Loss
With factory-polished connectors, DiMi's pigtails offer insertion loss typically below 0.3 dB and return loss exceeding 50 dB for UPC connectors or 60 dB for APC variants. Our precision-manufactured connectors eliminate variability, ensuring reliable, low-loss performance.

Factory-Polished for Consistency
Manufactured under controlled conditions with advanced polishing equipment, DiMi's pigtails provide permanent, low-loss connections, typically achieving splice losses below 0.05 dB when fusion spliced to backbone cables-ensuring network reliability and performance.

Learn more about customlzatlon >>

Fiber Optic Patch Cords

Fiber Optic Patch Cords, also known as jumper cables, feature connectors on both ends and serve as the flexible interconnection medium in fiber optic cable assembly systems. These assemblies enable rapid configuration changes, equipment connections, and cross-connect functionality in telecommunications rooms, data centers, and equipment distribution areas. Available in simplex (single fiber), duplex (two fibers), or high-density configurations like 12-fiber MPO/MTP assemblies, patch cords support everything from basic point-to-point links to complex 100G and 400G data center applications.

Our manufacturing facility produces both singlemode and multimode patch cords across all standard connector types-LC, SC, ST, FC, MPO/MTP-with jacket options including OFNR (Optical Fiber Non-conductive Riser), OFNP (Optical Fiber Non-conductive Plenum), and LSZH (Low Smoke Zero Halogen) to comply with building codes worldwide. For customers managing fiber optic cable assembly projects in harsh environments, we offer armored patch cords with stainless steel reinforcement and industrial-grade jacketing.

Learn more about customlzatlon >>

Customer Pain Points We Solve

Field Termination Challenges

Eliminate the time, skill requirements, and quality inconsistency of field polishing by using our factory-terminated pigtails with guaranteed performance specifications

Installation Speed

Reduce deployment time by up to 70% compared to traditional field termination methods, with pre-tested assemblies ready for immediate splicing

Performance Reliability

Achieve consistent insertion loss below 0.3 dB and return loss exceeding specification requirements through our ISO 9001-certified manufacturing processes

Testing and Documentation

Every fiber optic cable assembly ships with individual test reports showing insertion loss and return loss measurements, eliminating field testing requirements

Pigtail Specifications

Insertion Loss: <0.3 dB

Return Loss: >50 dB (UPC)

Splice Loss: <0.05 dB

All connector types available

Patch Cord Options

Simplex/Duplex/MTP

OFNR/OFNP/LSZH Jackets

Armored variants available

100G/400G compatible

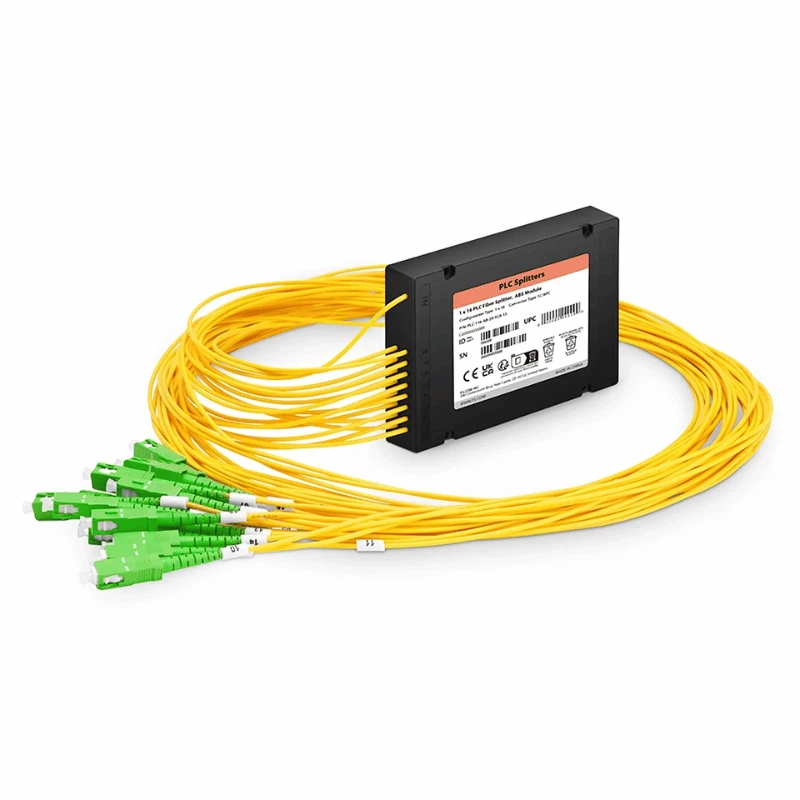

Fiber Optic Splitters

Fiber optic splitters serve as the critical passive distribution nodes in modern PON architectures, enabling service providers to maximize infrastructure utilization by serving multiple subscribers from a single fiber source. As telecommunications companies deploy FTTH networks at unprecedented scale, the performance characteristics and reliability of PLC (Planar Lightwave Circuit) splitters directly impact both the technical feasibility and economic viability of these deployments.

Contact now

PLC Splitter Technology Advantages

PLC Splitter Technology Advantages in fiber optic cable assembly applications stem from their sophisticated semiconductor manufacturing process. Unlike traditional fused biconical taper (FBT) splitters that physically fuse and stretch fibers, PLC splitters use photolithographic techniques to create waveguide patterns on silica substrates. This approach delivers several critical advantages:

Wavelength-insensitive performance across the 1260-1650 nm spectrum (covering all PON wavelengths)

Exceptional uniformity with insertion loss variation typically under 1.0 dB across all output ports

Compact form factors ideal for space-constrained installations

Our PLC splitter portfolio encompasses split ratios from 1x2 through 1x64 and 2x64, with packaging options optimized for different deployment scenarios. Steel tube splitters provide robust protection for direct burial or aerial applications, ABS box modules offer compact solutions for terminal boxes and street cabinets, LGX cassettes enable high-density rack mounting in central offices, and rack-mount chassis support large-scale deployments with organized fiber management.

Customer Pain Points We Solve

Network Scalability Limitations

Our 1x64 and 2x64 PLC splitters maximize subscriber capacity per PON interface, reducing upstream equipment costs and improving ROI

Wavelength Compatibility Issues

Wide operating wavelength range (1260-1650 nm) ensures compatibility with EPON, GPON, XG-PON, and future 10G-EPON standards

Installation Space Constraints

Compact packaging options, including mini-tube modules as small as 40mm x 4mm, fit within crowded terminal boxes and splice closures

Performance Uniformity

Insertion loss variation under 1.0 dB across all ports ensures consistent signal levels to all subscribers, eliminating "near-far" problems

Split Ratio	Packaging Options	Typical Insertion Loss
1x2, 2x2	Steel tube, ABS box, LGX cassette	<3.5 dB
1x4, 2x4	Steel tube, ABS box, LGX cassette	<7.0 dB
1x8, 2x8	ABS box, LGX cassette, rack-mount	<10.5 dB
1x16, 2x16	ABS box, LGX cassette, rack-mount	<14.0 dB
1x32, 2x32	LGX cassette, rack-mount chassis	<17.5 dB
1x64, 2x64	LGX cassette, rack-mount chassis	<21.0 dB

Fiber Optic Adapters

Fiber optic adapters, while often overlooked in fiber optic cable assembly planning, play a crucial role in maintaining signal quality throughout the physical layer infrastructure. These precision-machined components provide the alignment mechanism that enables two connectorized fibers to mate with minimal insertion loss and maximum repeatability. The ferrule alignment sleeves within adapters must hold concentricity tolerances within micrometers to achieve the performance levels required for modern high-speed applications.

Our adapter manufacturing utilizes zirconia ceramic alignment sleeves offering superior dimensional stability compared to phosphor bronze alternatives. This material choice delivers insertion loss typically below 0.2 dB, return loss exceeding 50 dB for UPC connections and 60 dB for APC connections, and exceptional durability through 500+ mating cycles. Adapter housings are available in both simplex and duplex configurations, with mounting options including panel mount, bulkhead, and LGX cassette integration.

Contact now

Customer Pain Points We Solve

Connection Quality Degradation

Precision ceramic alignment sleeves maintain concentricity through hundreds of mating cycles, ensuring consistent performance

Mixed Connector Environments

Hybrid adapters (e.g., SC/LC) enable efficient connection between different connector families without requiring separate patch cords

Contamination Vulnerability

Dust caps and protective shutters (available on premium models) shield alignment sleeves from contamination when not in use

Installation Flexibility

Multiple mounting formats support both new construction and retrofit applications in any infrastructure environment

Available Adapter Types

LC-LC

Simplex/Duplex

SC-SC

Simplex/Duplex

ST-ST

Simplex

FC-FC

Simplex

MPO-MPO

12/24 Fiber

Hybrid

SC-LC, ST-SC, etc.

Fiber Optic Enclosures and Distribution Boxes

请替换当前内容 This 50kVA single phase pole mounted transformer is exported to Canada inJuly,2024.The rated power of the pole mounted transformer is 50 KVA, the primary voltage is 34.5 kV and secondary voltage is 0.48v/0.277 KV. Western developed countries and Southeast Asia. North and South America, a large number of single-phase pole mounted This 50kVA single phase pole mounted transformer is exported to Canada inJuly,2024.The rated power of the pole mounted transformer is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA.

Customer Pain Points We Solve

Fiber Damage During Maintenance

Segregated splice and patch areas with protective covers prevent accidental damage to fusion splices during routine patching operations

Future Expansion Constraints

Modular designs with spare capacity in splice trays and adapter panels support network growth without requiring complete enclosure replacement

Environmental Vulnerability

IP65/NEMA 4 rated outdoor enclosures protect sensitive optical components from moisture, dust, UV exposure, and temperature extremes

Installation Complexity

Pre-configured enclosures with pre-loaded splice trays and adapter panels reduce field assembly time and eliminate configuration errors

Distribution Box Categories

Wall-Mount Terminal Boxes

Provide the first point of demarcation in FTTH deployments, where service drop cables transition to customer premises wiring. Compact designs (typically 8-12 fiber capacity) incorporate splice trays with pigtail storage and small adapter panels, enabling technicians to activate multiple subscribers from a single enclosure.

Contact now

LGX-Compatible Modules

Represent the industry standard for modular, high-density fiber optic cable assembly management in central offices and data centers. The LGX footprint (approximately 5" x 7") enables flexible rack configuration, with modules available in multiple heights (1U, 2U, 4U) to balance port density against fiber management space.

Contact now

Rack-Mount ODF Chassis

Serve as the backbone of large-scale telecommunications and enterprise network infrastructure, organizing hundreds of fiber connections in an accessible, scalable framework. Our designs feature front-side patching with rear-side cable entry and splice management.

Contact now

Enclosure Environmental Ratings

Enclosure Type	IP Rating	NEMA Rating	Environment
Indoor Wall-Mount	IP20	1	Telecom rooms, data centers
Outdoor Wall-Mount	IP65	4	Building exteriors, pole-mount
Underground Splice Closure	IP68	6P	Direct burial, underground
Rack-Mount ODF	IP20	1	Central offices, data centers
Industrial Enclosure	IP66	4X	Factories, harsh environments

Fiber Optic Hardware and Accessories

Professional fiber optic cable assembly installations require an extensive ecosystem of supporting hardware to secure, protect, and manage optical cables throughout their journey from headend to endpoint. This infrastructure, while not directly involved in signal transmission, profoundly impacts long-term system reliability by protecting cables from mechanical stress, environmental damage, and accidental disruption.

Fiber Optic Closure Systems

Provide weatherproof protection for cable splices in outside plant (OSP) deployments. Our heat-shrink and mechanical closures accommodate multiple cable entries (typically 2-6 ports) and house splice trays with capacity ranging from 24 to 576 splices. Gel sealing systems create moisture barriers while maintaining re-entry capability for future expansion or troubleshooting.

Cable Management Hardware

Encompasses the full range of mounting and routing components required in both OSP and premises installations. J-hooks, D-rings, and cable trays route cables with proper bend radius control through pathways; slack storage loops accommodate thermal expansion/contraction and provide reserves for future re-termination.

J-hooks & D-rings
Cable trays & ladder racks
Slack storage loops
Entrance protection devices
Strain relief clamps
Cable guides & protectors

Patch Cord Management Accessories

Bring order to the potentially chaotic environment of high-density patch fields. Horizontal and vertical cable managers route jumpers with proper bend radius control, color-coded patch cord bundles simplify circuit identification, and cable ties with permanent write-on tags enable clear documentation.

Horizontal/vertical managers
Color-coded patch bundles
Write-on cable ties
Overhead management systems
Labeling systems
MPO trunk organizers

Customer Pain Points We Solve

Cable Damage in Harsh Environments

Ruggedized closures and protective hardware shield fiber optic cable assembly infrastructure from moisture ingress, temperature cycling, rodent damage, and physical impact

Maintenance Access Difficulties

Re-enterable closure designs and organized cable routing enable efficient troubleshooting and system expansion without disturbing active circuits

Documentation and Identification

Color-coding schemes, permanent tagging systems, and standardized labeling practices prevent circuit identification errors during maintenance

Installation Cost Efficiency

Pre-configured hardware kits with all required components reduce installation time and eliminate return trips for forgotten accessories
