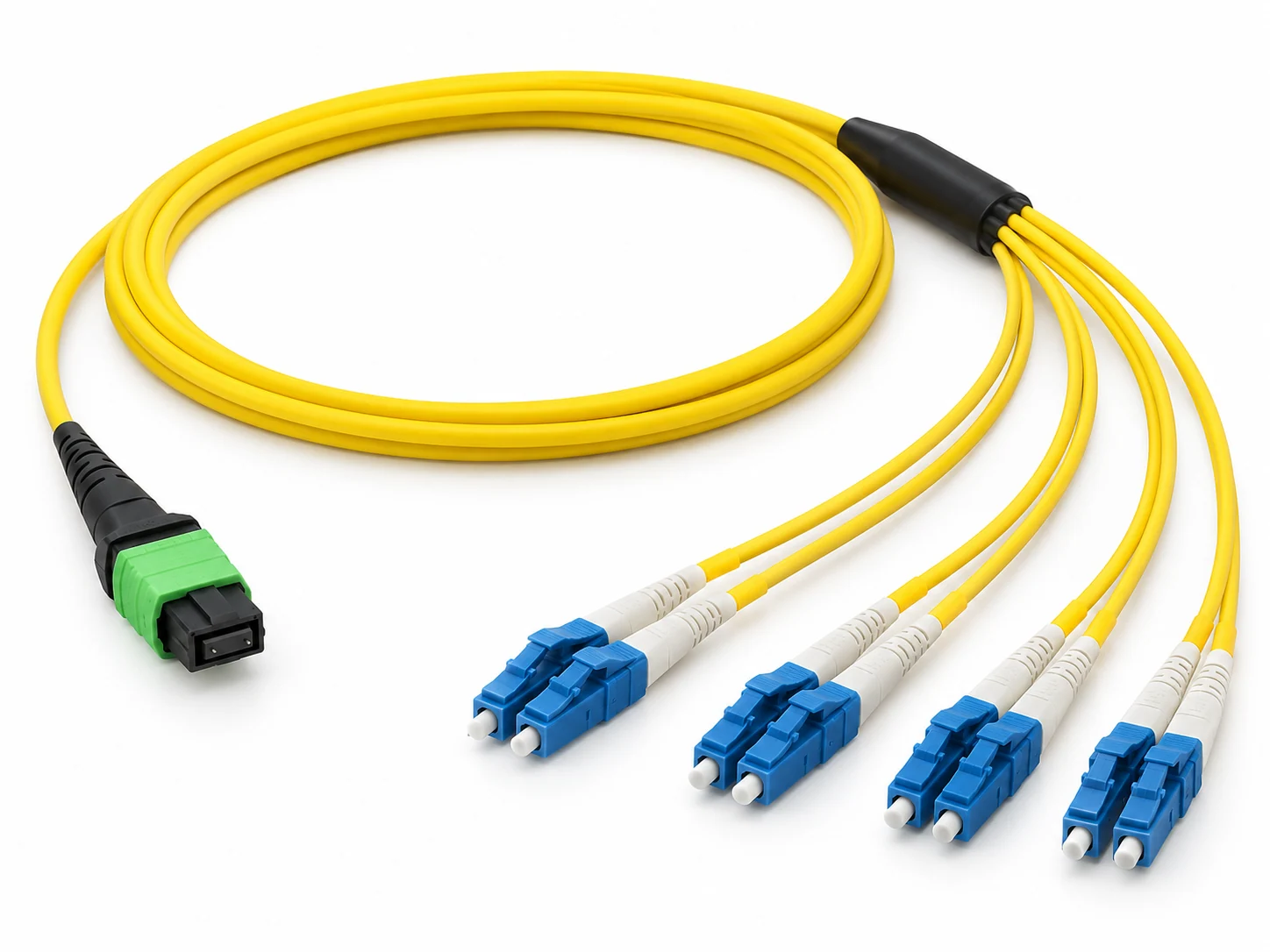

8 Fiber MPO-12 APC To 4× LC Duplex UPC OS2 Breakout Cable

The 8 Fiber MPO-12 APC to 4× LC Duplex UPC OS2 Breakout Cable connects one parallel-optics MPO interface to four LC duplex links. It is used in compatible 400GBASE-DR4 to 4×100GBASE-DR/DR1 breakout connections.

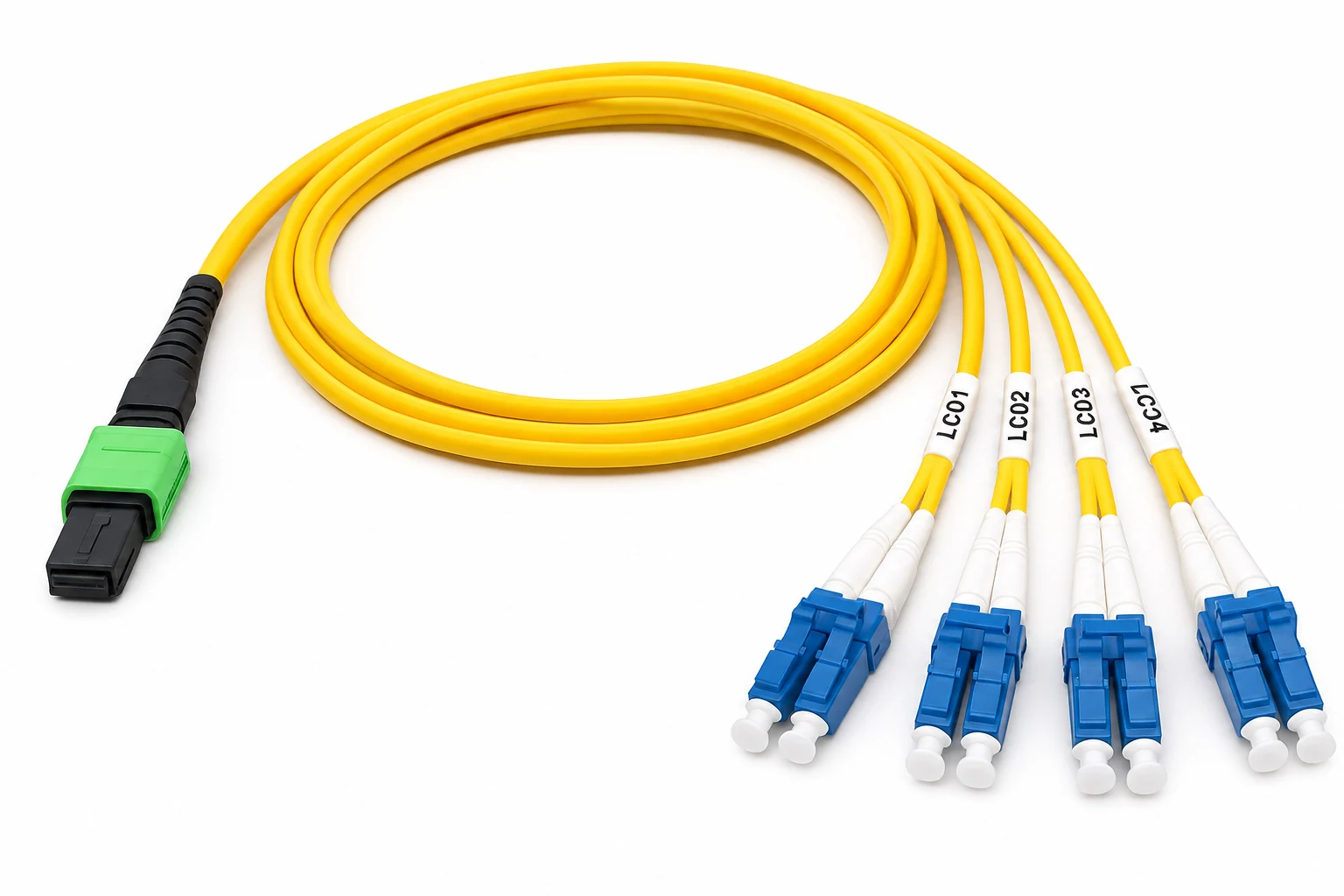

One MPO-12 APC connector carries eight active OS2 single-mode fibers to four LC duplex UPC branches. The four branches can be routed to separate 100G optical ports, with LC01–LC04 identification for organized rack cabling.

Connector A: 1× MPO-12 APC

Connector B: 4× LC Duplex UPC

Fiber: 8F OS2 9/125 μm single-mode

Application: 400G DR4 to 4×100G DR/DR1

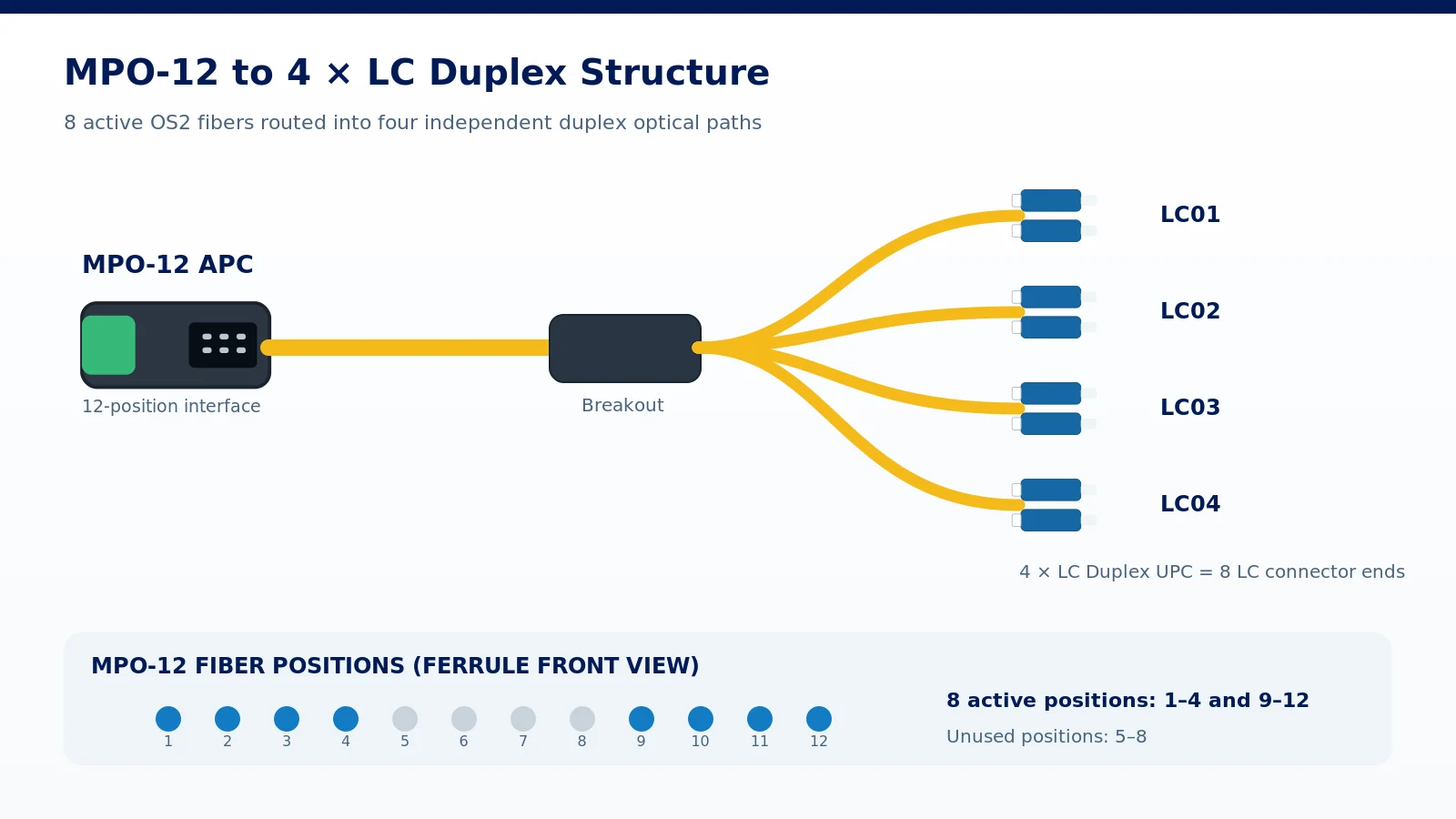

The MPO-12 end has twelve fiber positions, with eight active fibers assigned to four transmit/receive pairs. Positions 1–4 and 9–12 carry the four parallel optical lanes; the center positions 5–8 are unused in this eight-fiber arrangement.

Each lane terminates in one LC duplex branch. The MPO APC interface is intended for compatible angled-polish parallel-optics connections, while the LC UPC ends connect to duplex single-mode optics. Connector pinning and end-to-end polarity are configured for the mating interfaces.

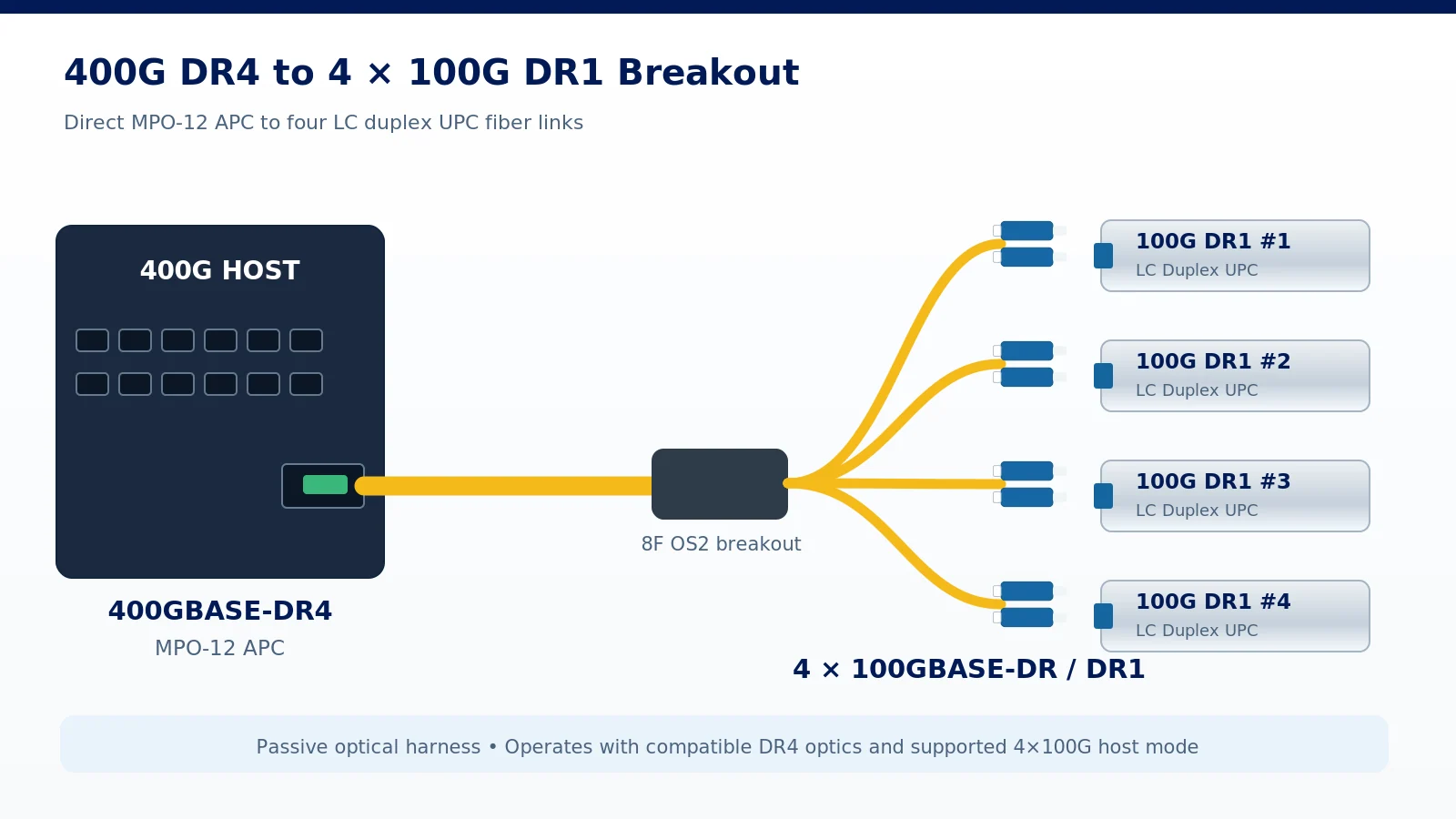

The harness provides four duplex fiber paths between a compatible 400G DR4 MPO-12 APC optical module and four 100G DR/DR1 LC duplex optical modules. The host switch or network interface operates in a supported 4×100G breakout mode.

Connection: 400G DR4 (MPO-12 APC) → 8-fiber OS2 breakout harness → 4×100G DR/DR1 (LC Duplex UPC).

The cable is a passive optical assembly. Available transmission distance and optical loss budget depend on the installed transceivers and the complete fiber channel.

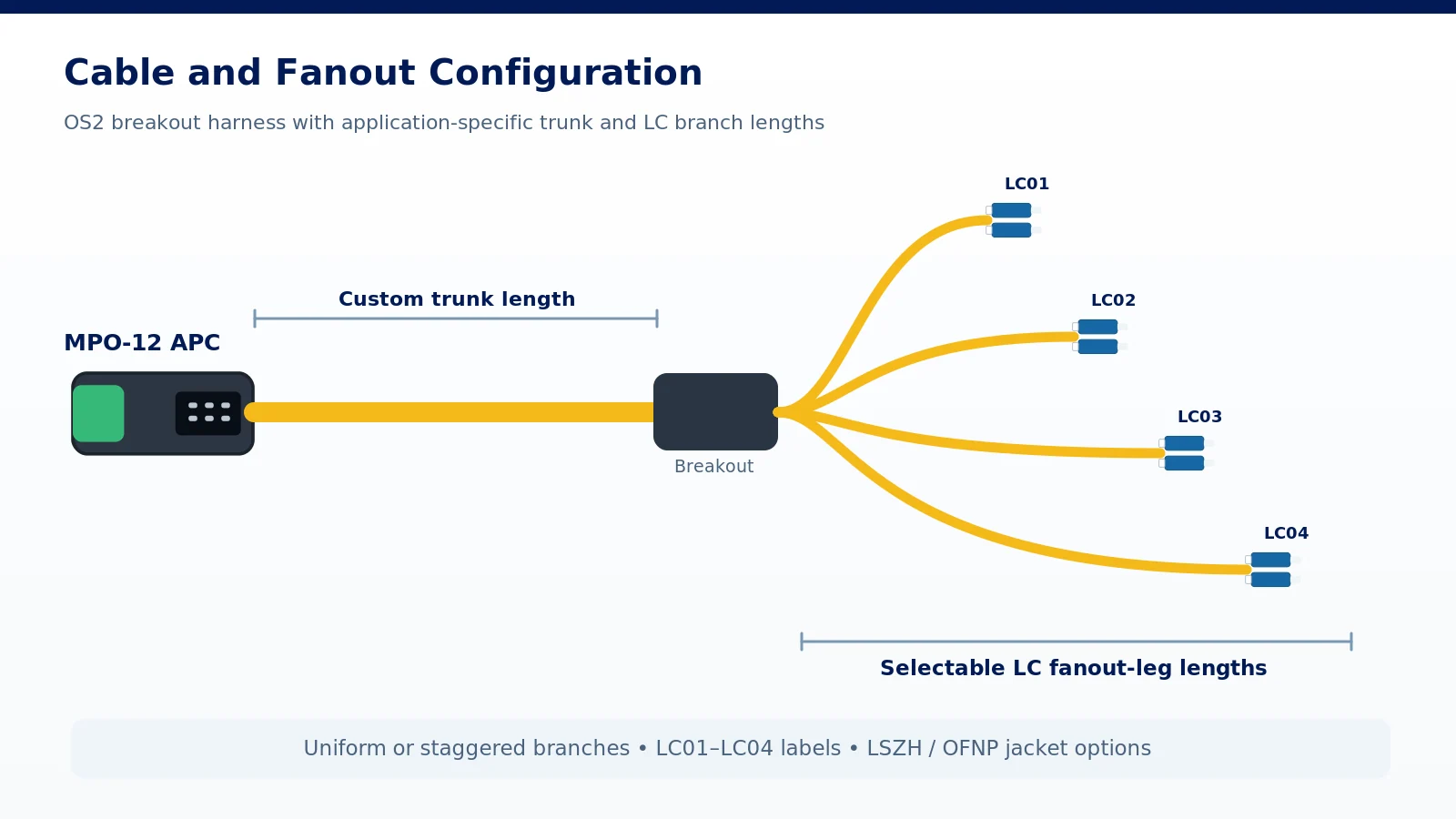

Main cable length, LC fanout-leg length and branch arrangement can be selected to match the equipment layout. Equal-length branches suit closely grouped ports; staggered legs help reach ports at different positions without excess slack.

Other connector combinations are available in the MPO/MTP breakout cable range.

DIMI supplies MPO-to-LC breakout harnesses in project-specific lengths and fanout arrangements. Send the cable quantity, overall length, LC branch lengths and required jacket with your inquiry. Optical module part numbers can be included for existing DR4 breakout installations.

Recommended inquiry details: quantity, total length, LC branch length, jacket type, branch labeling and optical module model.
