Technical Specifications
| Parameter | Imperial | Metric | Notes |
|---|---|---|---|
| Clamp Body Length | 5.75 in | 146 mm | Overall end-to-end dimension |
| Clamp Body Width | 1.6875 in | 42.86 mm | Maximum cross-sectional width |
| Weight (Complete Assembly) | 1.8 lbs | 0.82 kg | Includes all hardware |
| Strand Diameter Range | 1/4" - 7/16" | 6.35 - 11.11 mm | Universal fit specification |
| Through-Bolt Diameter | 5/8 in | 15.88 mm | Standard mounting requirement |
| Mounting Hole Diameter | 0.6875 in | 17.46 mm | Center mounting interface |
| Clamp Bolt Diameter | 1/2 in | 12.7 mm | Carriage bolt specification |
| Thread Specification | 1/2"-13 UNC | M12 x 1.75 | Standard coarse thread |
| Vertical Load Capacity | 15,000 lbs | 68 kN | Maximum working load |
| Slip Strength | >3,000 lbs | >13.3 kN | Minimum guaranteed performance |
| Recommended Torque | 35-45 ft-lbs | 47-61 Nm | For clamp bolts |
| Through-Bolt Torque | 65-75 ft-lbs | 88-102 Nm | For pole mounting |
| Material Specification | ASTM A36 Steel | - | Carbon steel substrate |
| Coating | Hot-Dip Galvanized | ASTM A153 | Corrosion protection |
| Zinc Coating Thickness | 3.9 mils minimum | 100 µm | Per ASTM A153 |
| Operating Temperature | -40°F to +185°F | -40°C to +85°C | Continuous operation |
| Maximum Line Angle | 30 degrees | 30 degrees | For straight clamp use |
| Compliance Standards | NESC, ANSI | ISO 9001 | Quality certifications |
Carbon steel, hot-dip galvanized (ASTM A153)
Clamp Body
Carbon steel, hot-dip galvanized (ASTM A153)
Keeper Plate
Grade 5 steel, zinc-plated
Square Nuts
Grade 5 steel, zinc-plated
Carriage Bolts
Spring steel, zinc-plated
Lock Washers
Not included (field-supplied 5/8" x appropriate length)
Through-Bolt
Environmental Ratings
Salt Spray Resistance
1000+ hours (ASTM B117)
UV Resistance
No degradation after 5000 hours QUV exposure
Humidity Resistance
Suitable for 100% RH environments
Wind Loading
Tested to 120 mph (193 km/h) sustained winds
Why choose DIMI Straight Cable Suspension Clamp?
Proven Load Performance
Engineered to support vertical loads up to 15,000 lbs with slip strength exceeding 3,000 lbs
Universal Compatibility
Accommodates strand diameters from 1/4" to 7/16" (6.35mm to 11.11mm) for maximum installation flexibility
Rapid Deployment
Factory-assembled design eliminates loose hardware and reduces installation time by 40%
Long-Term Durability
Hot-dip galvanized steel construction withstands extreme weather conditions for decades of service life
Precision Engineering
Interlocking clamp design ensures proper alignment and consistent clamping force across the entire messenger stran

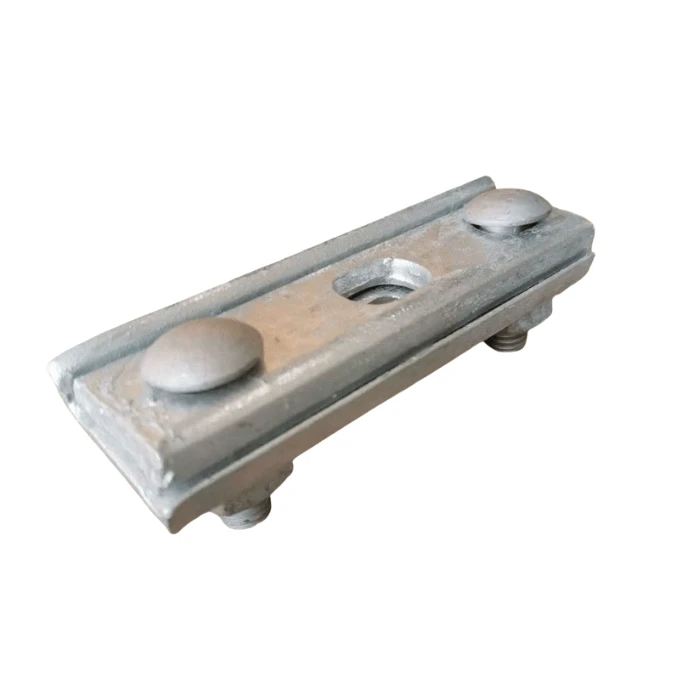

Product Features
Advanced Three-Bolt Clamping System
The straight cable suspension clamp utilizes a robust three-bolt configuration where the 5/8" through-bolt serves dual purposes as both the mounting element and primary clamping member. This intelligent design distributes clamping forces evenly across the messenger strand, preventing stress concentration points that could lead to premature cable failure.
Corrosion-Resistant Construction
Manufactured from high-grade carbon steel with hot-dip galvanized coating meeting ASTM A153 standards, the straight cable suspension clamp delivers exceptional resistance to atmospheric corrosion, salt spray, and industrial pollutants. The galvanization process provides a minimum zinc coating thickness of 3.9 mils (100 microns), ensuring protection in coastal and industrial environments.
Tool-Free Strand Insertion
The open-design configuration allows linemen to position the messenger strand without removing the through-bolt, significantly reducing installation time and improving safety during overhead work operations. The straight cable suspension clamp design supports single-handed operation when properly secured to the pole structure.
Temperature Performance Range
Tested and certified for continuous operation from -40°C to +85°C (-40°F to +185°F), the straight cable suspension clamp maintains structural integrity and clamping force across the full temperature spectrum encountered in telecommunications infrastructure deployment.
Low-Profile Design
With a total length of only 5.75 inches (146mm) and width of 1.69 inches (43mm), the compact straight cable suspension clamp minimizes wind loading and visual impact while maintaining full structural performance. The streamlined profile reduces ice and snow accumulation in winter climates.
Standardized Mounting Interface
The 11/16" (17.46mm) center mounting hole accommodates standard 5/8" through-bolts with proper clearance for thermal expansion. This standardized interface ensures compatibility with existing pole hardware and simplifies inventory management for telecommunications contractors.
Factory-Installed Hardware Integration
All fastening components including carriage bolts (1/2"-13 thread), square nuts, lock washers, and through-bolts are pre-assembled at the factory. This eliminates the risk of missing components in the field and ensures proper hardware specifications are maintained throughout the installation process.
Optimized Grip Profile
The curved inner surfaces of the clamp body and keeper are precisely machined to match standard messenger strand profiles. This contoured design maximizes contact area while minimizing point loading on the cable, extending cable service life and maintaining optimal signal transmission characteristics for fiber optic applications.
Application Scenarios
Telecommunications Infrastructure
DIMI Fiber suspension clamps provide reliable support for critical telecommunications networks, ensuring consistent performance and long-term durability in various deployment scenarios.
- Aerial fiber optic cable support on straight runs between poles
- CATV and broadband coaxial cable suspension systems
- Telephone drop wire and multi-pair copper cable installations
- Fiber-to-the-home (FTTH) distribution networks on utility poles
- 5G infrastructure and small cell deployment support
Electrical Utility Systems
Designed to meet the rigorous demands of electrical utility environments, DIMI suspension clamps provide secure support for communication and control cables in power distribution networks.
- Messenger-supported power distribution cable systems
- Communication cable support on power transmission structures (with proper clearances)
- Supervisory control and data acquisition (SCADA) cable networks
- Smart grid communication infrastructure
- Substation communication and control cabling
Application Suitability Summary
| Application Type | Recommended Model | Optional Upgrades | Installation Notes |
|---|---|---|---|
| FTTH Distribution | DIMI-SSC-UNI | -KIT | Standard torque specs |
| CATV/Broadband | DIMI-SSC-312 | -AS01 | Verify cable weight |
| Power Utility | DIMI-SSC-375 | -SS | Follow NESC clearances |
| 5G Infrastructure | DIMI-SSC-UNI | -KIT | Tighten to upper torque range |
| Coastal Deployments | DIMI-SSC-UNI | -SS, -AS01 | Quarterly inspections |
Key Technical Specifications for Recommended Applications
Load Capacity
15,000 lbs
Vertical Working Load
Strand Range
1/4" - 7/16"
Universal Compatibility
Corrosion Protection
ASTM A153
Hot-Dip Galvanized
Service Life
25+ Years
Typical Service Life
Temperature Range
-40° to 185°F
Continuous Operation
Torque Specification
35-45 ft-lbs
Clamp Bolt Torque
