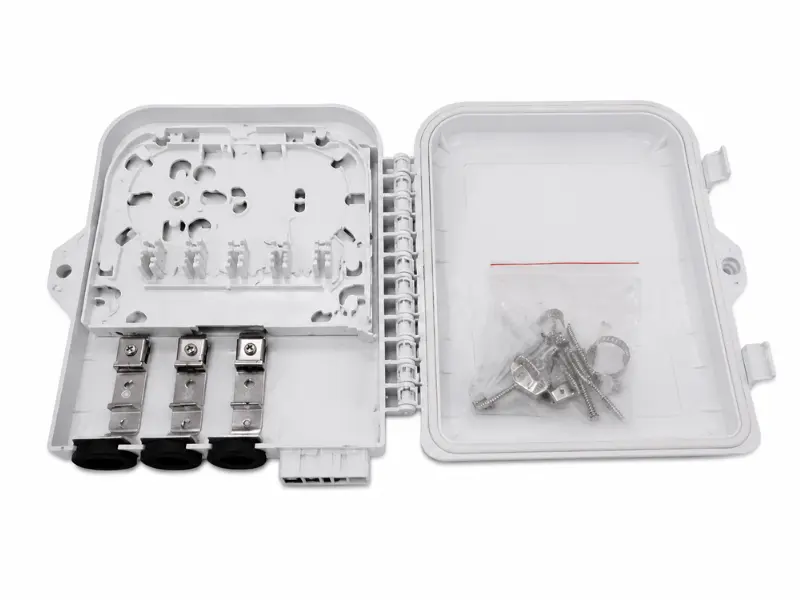

8 Port Fiber Termination Box for FTTH Last-Mile Access
Designed for feeder-to-drop cable termination, fiber splicing, optical splitting, and 8-subscriber FTTH access. The [DIMI FIBER] 8 port fiber termination box ships with SC/APC adapters, structured fiber management and an IP-rated housing engineered for indoor MDU corridors and outdoor wall- or pole-mounted FTTx deployment, with optional 1×8 PLC splitter integration for PON distribution.
Why Choose the DIMI FIBER 8 Port Fiber Termination Box?
8-Subscriber Access in a Single Compact Node
The DIMI FIBER 8 port fiber termination box supports up to 8 subscriber drop connections inside one project-ready enclosure, making it the right density choice for FTTH access points serving residential MDUs, small commercial buildings, ISP street nodes and rural broadband clusters where larger 16- or 24-port enclosures are oversized and 4-port units are too limited.
Optional 1×8 PLC Splitter Integration
Configure the box with a 1×8 PLC splitter to complete feeder-to-drop optical distribution inside a single housing. This consolidates splicing, splitting and termination into one project-ready unit, reducing the number of enclosures, the on-site cabling steps and the BOM complexity for PON rollout teams.
IP-Rated Outdoor Protection
The weather-resistant housing is engineered to protect fiber connections from dust ingress, moisture, UV exposure and the handling stress of outdoor wall, pole and façade installation. Final IP rating is verified per model and supported with an IP test report on request, so engineers can match the box to project tender requirements.
Structured Fiber Management
Internal layout separates the feeder entry, splice tray, splitter fixing area, adapter panel and drop pigtail storage. Structured routing minimizes bend stress, prevents cross-interference between fibers and supports stable insertion loss performance across the access network - a meaningful operational benefit for ISPs running long-term FTTH service.
Flexible Wall and Pole Mounting
The DIMI FIBER 8 port FTTH box ships with mounting options for wall and pole installation, supporting residential corridors, commercial façades, utility poles and outdoor aerial spans. The same product covers indoor MDU, outdoor distribution and rural FTTH scenarios, simplifying SKU planning for contractors and distributors managing multi-site rollouts.
Project-Ready Supply, OEM/ODM and Sample Support
As a factory-direct manufacturer, DIMI FIBER supplies the 8 port fiber termination box with sample evaluation for new project buyers, OEM/ODM customization for logo, color, adapter type and splitter loadout, and bulk order delivery for contractor and distributor programs. Datasheets, drawings and test reports are available upon request to support pre-purchase technical confirmation.
Technical Specifications
The technical specification table below is structured to serve both engineering verification and procurement decisions. Each row carries a source type so [DIMI FIBER] sales engineers and the project buyer can quickly identify which values are confirmed and which require factory test report confirmation before publishing as final commitments.
|
Parameter |
Confirmed / Benchmark / Suggested Specification |
|
Product Name |
DIMI FIBER 8 Port Fiber Termination Box |
|
Product Category |
FTTH Fiber Termination Box / Fiber Access Terminal Box |
|
Model Number |
DIMI-FTB-08 |
|
Port Capacity |
8 subscriber drop ports |
|
Adapter Type |
SC/APC standard; SC/UPC optional |
|
Splitter Configuration |
Compatible with 1×8 PLC splitter (LGX or mini module) |
|
Fiber Splice Capacity |
Up to 12–16 splice positions (typical) |
|
Cable Entry |
1 feeder cable input + 8 drop cable outputs |
|
Feeder Cable Diameter Range |
Ø8–12 mm (industry benchmark) |
|
Drop Cable Diameter Range |
Ø2.0–5.0 mm (industry benchmark) |
|
Housing Material |
PC+ABS engineering plastic, UV-resistant |
|
Flame Rating |
UL94 V-0 (target) |
|
IP Rating |
IP65 / IP67 |
|
Operating Temperature |
-40°C to +75°C |
|
Storage Temperature |
-40°C to +85°C |
|
Insertion Loss (mated pair, typ.) |
≤0.2 dB |
|
Return Loss (APC) |
≥60 dB |
|
Return Loss (UPC) |
≥50 dB |
|
Mounting Method |
Wall-mounted and pole-mounted |
|
Dimension (L×W×H) |
Per factory drawing |
|
Net Weight |
Per factory data |
|
Color |
Standard grey / white; custom on request |
|
Accessories |
Mounting kit, sealing grommets, cable ties, splice sleeves, user manual |
|
OEM/ODM |
Logo, color, adapter, splitter, packaging, label customization |
|
Certifications |
RoHS / CE / ISO 9001 (available upon request) |
|
Sample Policy |
Samples available for project evaluation |
|
MOQ |
Per project quotation |
|
Lead Time |
Sample 3–7 days; bulk 15–25 days (to confirm) |
|
Packaging |
Inner polybag + export carton; OEM packaging available |
8 Port Fiber Termination Box Applications
Indoor MDU/SFU Subscriber Access
Inside multi-dwelling units, residential corridors, weak-current shafts and single-family unit entries, the DIMI FIBER 8 port fiber termination box serves as a compact 8-subscriber access node. The small footprint fits standard riser cabinets while the structured internal routing supports easy subscriber activation and future maintenance.
Outdoor Wall-Mounted FTTH Drop Node
On residential façades, commercial building exteriors and small-cluster distribution points, the box is wall-mounted and exposed to weather. IP-rated sealing, UV-resistant housing and protected SC/APC adapters keep optical performance stable across long-term outdoor operation.
Pole-Mounted Fiber Distribution Point
On utility poles in suburban and rural FTTH corridors, the box functions as a distribution point feeding 8 nearby subscribers. The same housing supports pole-mounting hardware, simplifying SKU planning across mixed wall and pole deployment scenarios.
1×8 PLC Splitter Distribution Node
When the box is configured with a 1×8 PLC splitter, it operates as a PON distribution node - one feeder fiber enters, eight subscriber fibers leave - replacing a separate splitter housing in compact FTTH topologies. The internal splitter fixing area secures the module for stable optical distribution.
Commercial Building Fiber Access
In offices, retail buildings, industrial parks and commercial campuses, the 8-port box centralizes subscriber drop terminations for a building floor or zone, supporting clear port labeling, easy maintenance access and consistent service delivery for business subscribers.
Rural Broadband Expansion
Rural FTTH expansion programs need durable boxes that survive heat, cold, dust and humidity across remote installation sites. The DIMI FIBER 8 port fiber termination box is engineered for outdoor reliability, with sample evaluation and bulk order delivery supporting multi-site rural rollouts.
Request Rural Project Quotation.
Tested for Outdoor FTTH Network Reliability
DIMI FIBER supports quality with documentation rather than marketing claims. The 8 port fiber termination box passes through a multi-stage inspection process designed to give project buyers, distributors and OEM partners the data they need before placing or accepting a bulk shipment. Inspections cover incoming material (housing, adapters, splitters, hardware), assembly accuracy, port mating performance, optical insertion and return loss validation on configured units, visual cosmetic inspection, and packaging integrity.
Insertion loss and return loss data, IP rating test reports and material flame-rating certificates can be provided upon request, so engineering teams can verify the product against tender requirements without relying on unsubstantiated claims. Available certifications may include RoHS, CE and ISO 9001 - final compliance status should be confirmed with [DIMI FIBER] before publishing in customer-facing documentation.
DIMI FIBER Factory-Direct Supply for Contractors, ISPs and Distributors
DIMI FIBER supplies the 8 port fiber termination box as a factory-direct manufacturer engineered for project-based procurement. The supply model is designed to support contractors managing FTTH rollouts across multiple sites, ISPs scaling last-mile access in waves, distributors building regional FTTH catalogs, and OEM partners launching private-label hardware.
Standard configurations are produced on a scheduled basis, while OEM/ODM variants - including custom logo, color, adapter and splitter loadout, packaging design, label content and accessory kit - can be added to project programs without breaking the standard supply cadence. The objective is simple: stable supply, transparent quotation and predictable delivery for buyers who source on a project program rather than one-off basis.
FAQ
Q: What is the DIMI FIBER 8 port fiber termination box?
A: It is an FTTH/FTTx access enclosure engineered as an 8-subscriber drop node. Inside one housing, the DIMI FIBER 8 port fiber termination box handles feeder cable termination, fiber splicing, optional 1×8 PLC splitter integration and 8-port drop cable distribution - with structured fiber management and IP-rated outdoor protection.
Q: What applications is this box suitable for?
A: Indoor MDU/SFU subscriber access, outdoor wall-mounted FTTH drop nodes, pole-mounted distribution points, 1×8 PLC splitter PON nodes, commercial building fiber access and rural broadband expansion. The same SKU family supports multi-site FTTH rollouts.
Q: What technical specifications are available?
A: Port capacity, adapter type, splitter configuration, fiber splice capacity, cable diameter range, housing material, IP rating, operating temperature, insertion loss, return loss, dimensions, weight and mounting method. Download the DIMI FIBER datasheet for the consolidated reference, and request a test report for parameter-level confirmation.
Q: Are the competitor benchmark values used as confirmed [DIMI FIBER] data?
A: No. The benchmark column in our reference tables reflects values from competitor pages or industry references. They are used to align target specifications, not to claim them as DIMI FIBER confirmed values. Confirmed values are validated against factory test reports before publication.
Q: How should I confirm final specifications before placing an order?
A: Share project requirements with DIMI FIBER - port count, adapter type, splitter requirement, IP rating, cable diameter, mounting method, quantity and destination country. The sales engineering team will reply with a configuration confirmation, drawing, datasheet and quotation.
Q: Do you support OEM/ODM?
A: Yes. DIMI FIBER supports OEM/ODM for logo, color, adapter and splitter loadout, accessory kit, packaging design and label content. OEM/ODM variants are scheduled as part of the standard production cadence to maintain consistent lead time.
Q: Can I request samples before placing a bulk order?
A: Yes. Samples of the DIMI FIBER 8 port fiber termination box are available for project evaluation, optical performance verification and distributor approval. Sample lead time is typically 3–7 days (to confirm). Discuss freight and unit cost with DIMI FIBER sales.
Q: What is the MOQ?
A: MOQ is defined per project program - based on configuration complexity, OEM requirements and program duration. For standard configurations, MOQ is typically discussed at the quotation stage. Send project details to DIMI FIBER for a confirmed MOQ proposal.
Q: What is the lead time?
A: Sample lead time: 3–7 days (to confirm). Bulk order lead time: typically 15–25 days (to confirm at quotation), with priority scheduling available for project programs and phased deliveries aligned with FTTH rollout milestones.
Q: Can you provide custom packaging?
A: Yes. DIMI FIBER offers OEM packaging including logo print, color scheme, inner protection, carton style and shipping marks. Provide your packaging brief and the engineering team will propose a packaging spec for approval before mass production.
Q: Can you provide datasheets, drawings or test reports?
A: Yes. The product datasheet and installation drawing are available on the DIMI FIBER download center. Insertion loss, return loss, IP rating and material test reports are available upon request, tied to the tested configuration.
Q: What information should I provide for a quotation?
A: Port count (8), adapter type (SC/APC or SC/UPC), splitter requirement (yes / 1×8 / none), IP rating expectation, cable diameter range, mounting method (wall / pole), quantity, destination country, project timeline and any OEM/ODM requirement. The more complete the brief, the faster DIMI FIBER can return a confirmed quotation.
Q: Are certifications available?
A: Available certifications may include RoHS, CE and ISO 9001 - final compliance status should be confirmed by DIMI FIBER before publishing in customer-facing documentation. Certificate copies can be provided to project buyers and distributors upon request.
Q: How do I choose the right DIMI FIBER 8-port model for my project?
A: Match the configuration to the project use case: empty box for pure splicing and termination, adapter-loaded for fast drop connection, pigtail-loaded for in-box termination, 1×8 PLC splitter-loaded for PON distribution and pre-connectorized for accelerated rollout. Share the FTTH scenario and DIMI FIBER will recommend the right configuration.
Need an 8 port fiber termination box for your next FTTH rollout?
Share your project details with DIMI FIBER- port count, adapter type, splitter requirement, IP rating, mounting method, quantity, destination country and project timeline - and our sales engineering team will return a configuration-confirmed quotation, datasheet and drawing within one working day.
