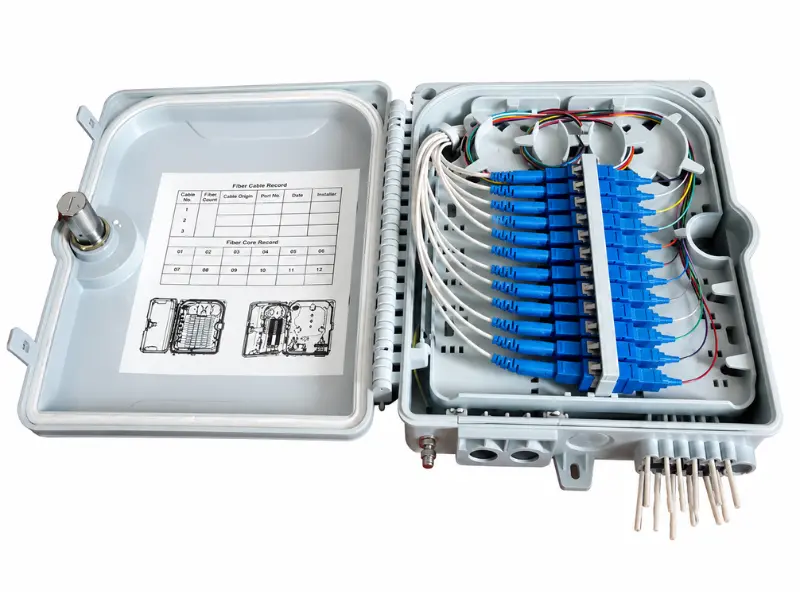

Wall & Pole Mounted 12 Core Fiber Distribution Box for FTTX Projects
The DIMI FIBER 12 port fiber termination box is built for the FTTH/FTTX last mile, where feeder cables meet subscriber drop cables. Inside one enclosure it brings together fiber splicing, PLC splitter placement, SC adapter termination, and structured cable routing - so installers can complete a clean, maintainable access node faster and with less field rework. Its IP-rated PC+ABS housing supports both indoor risers and outdoor wall or pole installation. As a factory-direct manufacturer, DIMI FIBER supports OEM/ODM customization, sample orders, and bulk project supply, with datasheets and test reports available so engineering buyers can confirm specifications before they commit.
Core Benefits
12-Port Subscriber Access in a Compact Node
The box terminates up to 12 drop cable connections from a single compact access point, letting contractors serve multiple subscribers in MDU buildings, corridors, and risers without consuming extra wall space. This higher access density per enclosure reduces the number of boxes a project needs, lowering both material cost and installation labor across large FTTH rollouts.
Splicing, Splitting & Distribution in One Enclosure
Instead of separate splice closures, splitter modules, and distribution panels, DIMI FIBER combines fiber splicing, PLC splitter placement, adapter termination, and cable storage in a single housing. This consolidation simplifies sourcing for project buyers, reduces the number of SKUs to stock, and gives field teams one standardized unit to install and maintain across an entire network.
Organized Internal Fiber Routing
Separated routing areas, fixed splice positions, and bend-radius protection keep fibers organized and reduce cable crossing inside the box. Cleaner routing protects optical performance, makes future moves-adds-changes far easier, and lowers the risk of macrobend loss introduced during installation or maintenance - a meaningful reliability gain over loosely organized enclosures.
Indoor and Outdoor Installation Support
The IP-rated PC+ABS housing is designed to support deployment in indoor telecom rooms as well as outdoor walls and poles exposed to rain, dust, and UV. One product line covering both environments means contractors can standardize on a single box family, simplify field logistics, and reduce the chance of ordering the wrong enclosure for a given site.
Installer-Friendly Field Efficiency
Flip-up or separated working areas let installers access the splice tray and adapter panel without disturbing existing connections, helping reduce installation time and field rework. Faster, repeatable installation directly improves labor productivity on volume FTTH projects - a result-oriented benefit that matters far more to contractors than appearance alone.
OEM/ODM & Project Configuration
Adapter type, splitter configuration, housing color, printed logo, accessory kits, and packaging can be customized for bulk orders. This lets distributors and brand buyers offer a branded, project-specific solution while DIMI FIBER handles quality-controlled manufacturing and export-ready packaging - supporting repeat orders and long-term procurement programs.
Technical Specifications
|
Parameter |
Specification |
|
Product Name |
12 Port Fiber Termination Box |
|
Product Category |
FTTH/FTTX Fiber Access Terminal / Distribution Box |
|
Fiber Capacity |
12 ports / 12 cores |
|
Adapter Capacity |
Up to 12 SC adapters |
|
Adapter Type |
SC/APC standard; LC / FC / ST optional |
|
Splice Capacity |
Suggested up to 12 fusion splices |
|
Compatible PLC Splitter |
Optional 1×4 / 1×8 |
|
Material |
PC+ABS, UV resistant |
|
IP Rating |
IP65 outdoor model |
|
Flame-Retardant Grade |
UL94 V-0 / V-1 target |
|
Insertion Loss |
Typical benchmark ≤0.2 dB |
|
Return Loss |
UPC ≥50 dB / APC ≥60 dB |
|
Plug-in Durability |
Industry benchmark >1000 mating cycles |
|
Working Temperature |
Industry range commonly −40°C to +60°C |
|
Relative Humidity |
Industry range ≤95% |
|
Cable Inlet / Outlet |
Specify inlet count and drop outlets |
|
Sample Policy |
Sample orders available |
|
Certification |
RoHS / REACH / ISO9001 |
|
Test Report |
IL/RL, IP, salt spray, drop |
Note: Final performance depends on the confirmed model and order requirements. Test reports are available on request, and benchmark values shown for reference should be verified against DIMI FIBER factory test data before publishing.
Applications
MDU / MTU Fiber Access
Installed in apartment buildings, corridors, risers, or telecom rooms, the 12 port fiber termination box serves multiple subscribers from one compact access point. Its 12-port capacity allows contractors to terminate and distribute drop cables for an entire floor, building section, or tenant group without overcrowding the riser. Organized fiber routing and clear port allocation make daily maintenance, subscriber activation, and future expansion easier for building network projects.
Outdoor Wall-Mounted FTTH Node
Mounted on building exteriors, residential walls, or small-business façades, the 12 port fiber termination box provides a protected outdoor termination point for feeder cables and subscriber drop cables. The IP-rated housing helps protect splicing, splitter, and adapter connections from rain, dust, UV exposure, and outdoor installation stress. It is suitable for contractors who need a compact, weather-resistant fiber access node close to end users.
Pole-Mounted FTTH Distribution Point
For suburban, village, and low-density broadband deployment, the 12 port fiber termination box can be installed on utility poles to connect feeder cables with multiple subscriber drop lines. This installation method helps operators extend FTTH coverage cost-effectively where underground cabling or indoor distribution is not practical. With proper cable fixing and internal fiber management, the box supports stable outdoor access points for rural and residential broadband projects.
Commercial Building Fiber Access
In office buildings, shops, schools, hospitals, hotels, and business parks, the 12 port fiber termination box supports structured fiber distribution to multiple tenants, rooms, or service areas. It provides a standardized access node for managing drop cable connections, adapter ports, and fiber splicing in one enclosure. For commercial network contractors, this helps simplify installation records, reduce cable confusion, and make future network changes easier to manage.
FTTB / FTTX Last-Mile Deployment
Positioned as the feeder-to-drop transition point, the 12 port fiber termination box helps telecom operators and contractors complete the last-mile connection between the distribution network and subscribers. It consolidates cable entry, fiber splicing, splitter placement, adapter termination, and drop cable output into one project-ready unit. This makes it suitable for FTTB, FTTH, and FTTX projects where stable, organized, and scalable access distribution is required.
ISP Broadband Expansion Projects
For ISPs expanding residential or small-business broadband coverage, the 12 port fiber termination box offers a practical access point for batch FTTH deployment. It helps standardize field installation across multiple sites, supports repeatable port management, and can be configured with adapters, pigtails, or PLC splitters according to project requirements. This makes it easier for procurement teams and contractors to use one consistent box model across different rollout areas.
Tested for Stable FTTH Network Performance
DIMI FIBER approaches quality as a procurement-risk issue, not just a marketing line: engineering buyers need evidence they can verify before committing to a bulk order.
Production is supported by in-process quality inspection covering appearance, dimensional checks, adapter assembly, and connection integrity, with optical insertion loss and return loss checks recommended at the connection level.
For outdoor models, environmental verification such as IP protection, UV resistance, salt spray, and drop testing can be arranged based on order requirements to confirm field durability.
Appearance check
Dimensional check
Adapter assembly verification
IL/RL connection check
IP / environmental verification
Final packaging inspection
FAQ
Q: What is the DIMI FIBER 12 port fiber termination box?
A: It is a 12 port (12 core) FTTH/FTTX fiber termination and distribution box that combines fiber splicing, optional PLC splitter installation, SC adapter termination, and organized cable routing in one enclosure. It serves as the feeder-to-drop access node in last-mile fiber networks for ISPs, contractors, and distributors.
Q: What applications is it suitable for?
A: It is used in FTTH/FTTX access networks, MDU and MTU building access, residential and commercial broadband, telecom rooms, and outdoor wall- or pole-mounted FTTH nodes. It also suits FTTB last-mile deployment and CATV/LAN fiber distribution points where organized drop cable termination is required.
Q: What technical specifications are available?
A: Confirmed attributes include 12-port capacity, SC/APC adapters, optional 1×4 / 1×8 PLC splitter, and wall/pole mounting. Other values such as insertion loss, return loss, IP rating, and material grade are shown as competitor or industry benchmarks and should be confirmed against DIMI FIBER test reports before publishing.
Q: Are competitor benchmark values used as confirmed data?
A: No. Any value labeled as a competitor or industry benchmark is provided for reference only and is not presented as DIMI FIBER confirmed data. Final specifications depend on the confirmed model and must be verified through our datasheet and test reports.
Q: How should I confirm final specifications?
A: Share your project requirements and request the datasheet, drawing, and test report for the specific model you are evaluating. DIMI FIBER will confirm the applicable insertion loss, return loss, IP rating, dimensions, and configuration for your order before you commit.
Q: Do you support OEM/ODM customization?
A: Yes. Logo printing, housing color, port and adapter configuration, splitter type, accessory kits, packaging, and product structure can be customized for bulk orders. This lets distributors and brand buyers offer a private-label FTTH solution backed by quality-controlled manufacturing.
Q: Can I request samples?
A: Yes. Sample orders are available for testing, project evaluation, and approval before mass production. Requesting a sample is a recommended step for first-time buyers to verify quality and fit before placing a bulk order.
Q: What is the MOQ and lead time?
A: MOQ and lead time depend on configuration and order volume. Please send your quantity, adapter type, splitter requirement, and packaging needs so DIMI FIBER can confirm exact MOQ and production lead time for your project. (Insert confirmed commercial terms before publishing.)
Q: Can you provide custom packaging?
A: Yes. Export-ready and custom packaging - including branded cartons and configuration-specific kitting - can be arranged for bulk and project orders. Specify your destination market and packaging requirements when requesting a quotation.
Q: Can you provide datasheets or test reports?
A: Yes. Datasheets, product drawings, catalog files, and test reports can be provided upon request. These documents support engineering review, vendor comparison, and internal project approval.
Q: What information is needed for a quotation?
A: Please share quantity, adapter type, splitter requirement, installation method (wall or pole), cable diameter, target market, and packaging requirements. The more project detail you provide, the faster DIMI FIBER can return an accurate, project-specific quotation.
Q: How do I choose the right model?
A: Tell us your network scenario - indoor or outdoor, building density, splitter ratio, and adapter type - and DIMI FIBER will recommend the right 12 port fiber termination box configuration. A model selection guide is available to help match the product to your FTTH project.
