Technical Specifications

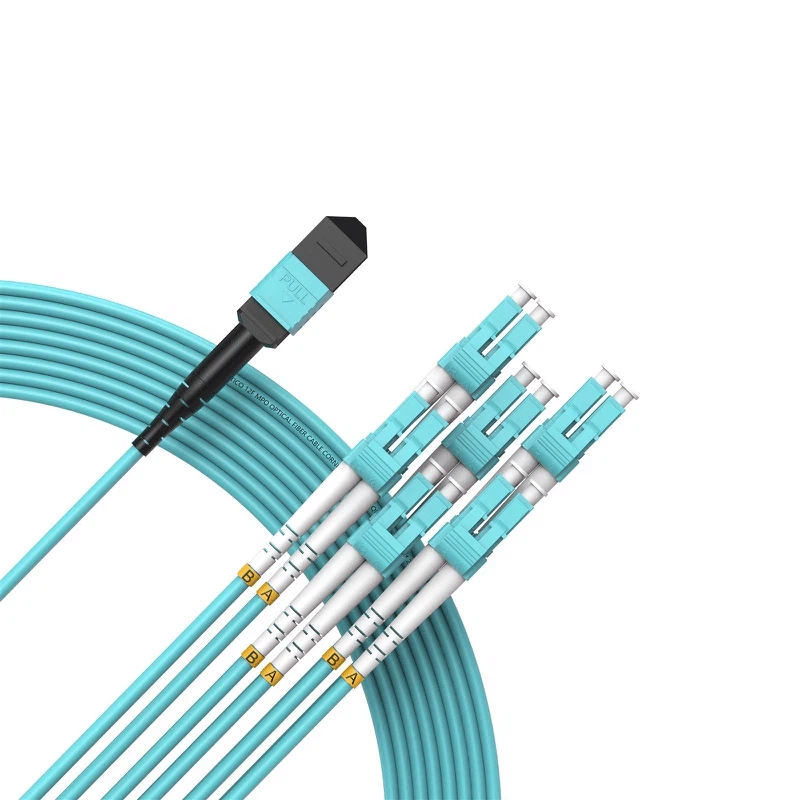

Product drawing

Cable Configuration

Parameter	Specification
Connector A	1× MPO/MTP-12 or MPO/MTP-8 Female (PC polished)
Connector B	4×SC Duplex or 6×SC Duplex (UPC polished)
Fiber Type	OM4 Multimode 50/125µm
Fiber Count	8-fiber or 12-fiber
Cable Structure	Round backbone + fanout legs
Backbone Diameter	3.0mm round cable
Fanout Leg	2.0mm or 3.0mm zip-cord
Jacket Rating	LSZH (default), OFNP optional
Standard Color	Aqua (OM4), Lime Green (OM5 optional)
Cable Length	1m to 100m (custom available)
Breakout Length	0.5m, 1.0m, 1.5m (customizable)

Optical Performance

Parameter	OM4 Multimode Specification
MPO Insertion Loss	≤0.35 dB (typical ≤0.25 dB)
SC Insertion Loss	≤0.30 dB per connector
Return Loss (UPC)	≥20 dB
Fiber Attenuation	≤3.0 dB/km @ 850nm, ≤1.5 dB/km @ 1300nm
Bandwidth	4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
Max Distance (10G)	550m @ 850nm
Max Distance (40G/100G)	150m @ 850nm

Mechanical Specifications

Parameter	Specification
Backbone Cable Diameter	3.0mm
Fanout Leg Diameter	2.0mm or 3.0mm
Minimum Bend Radius (Static)	10× cable diameter
Minimum Bend Radius (Dynamic)	20× cable diameter
Tensile Strength	150N (short term), 100N (long term)
Crush Resistance	1000N/100mm
Connector Durability	≥500 mating cycles
Strain Relief Boot	Flame-retardant, color-coded
Cable Jacket Material	LSZH or OFNP

Environmental

Parameter	Specification
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Relative Humidity	0% to 100% (non-condensing)
Fire Rating	UL 94 V-0, IEC 60332-1-2
Smoke Density	UL 283, ≤50 optical density
Toxicity	IEC 61034, ≤5% HCl
RoHS Compliance	RoHS Directive 2011/65/EU
REACH Compliance	EC No. 1907/2006

Applications

Data Center Switch-to-Server Connectivity

Connect core/aggregation switches with MPO ports to access-layer devices with SC ports, enabling flexible deployment from high-density patch panels to server racks.

MPO Backbone to Legacy Equipment Transition

In environments with deployed MPO structured cabling, provide plug-and-play connectivity for storage devices and servers using traditional SC interfaces.

Inter-Rack Fiber Channel Networks

In SAN storage area networks, branch MPO high-density backbones into multiple SC links connecting fiber switches to storage arrays.

40G/100G to 10G/25G Breakout Applications

Break out a single 40G QSFP+ or 100G QSFP28 port through MPO breakout cable into 4×10G or 4×25G SC connections, improving port utilization efficiency.
