Specifications Overview

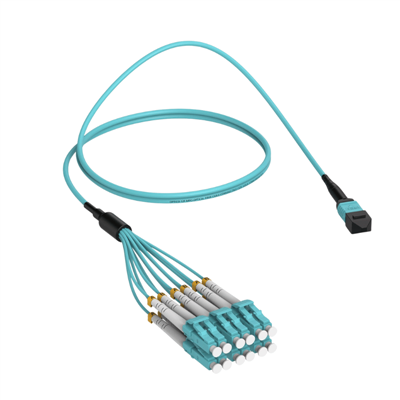

Product drawing
Basic feature
| Connector A | MPO/MTP Female, 12-fiber or 8-fiber, with or without pins |
| Connector B | 8×ST UPC or 12×ST UPC individual connectors |
| Fiber Type | OM4 Multimode 50/125µm, laser-optimized |
| Fiber Count | 8-fiber or 12-fiber configurations |
| Cable Structure | Round trunk with fanout breakout legs |
| Trunk Cable Diameter | 3.0mm round cable (standard) |
| Breakout Leg | 900µm tight-buffered, color-coded per TIA-598 |
| Jacket Rating | LSZH (standard), OFNP (plenum), PVC (general purpose) |
Digital feature
| Parameter | OM4 Multimode Specification |
|---|---|
| Insertion Loss (MPO end) | ≤0.35dB typical, ≤0.50dB maximum |
| Insertion Loss (ST end) | ≤0.30dB typical, ≤0.50dB maximum |
| Return Loss (UPC) | ≥45dB |
| Fiber Attenuation | ≤3.0dB/km @ 850nm, ≤1.5dB/km @ 1300nm |
| Bandwidth | ≥4700MHz·km @ 850nm |
| Operating Wavelength | 850nm/1300nm (multimode) |
Mechanical Specifications & Environmental Specifications
Mechanical Specifications
- Breakout Length: 0.5m, 1m, 1.5m, 2m, or custom
- Trunk Length: 1m to 100m, custom lengths available
- Cable Diameter: 3.0mm round trunk cable
- Breakout Leg Diameter: 900µm tight-buffered
- Tensile Strength: ≥50N (trunk), ≥30N (breakout legs)
- Crush Resistance: ≥1000N/100mm
- Bend Radius: 10× cable diameter (dynamic), 5× cable diameter (static)
Environmental Specifications
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 0% to 100% (non-condensing)
- Altitude: 0 to 5,000 meters
- Flame Rating: UL94 V-0, OFNP (plenum), LSZH
- UV Resistance: Yes (for outdoor-rated jackets)
- Ingress Protection: IP67 (for outdoor-rated connectors)
Customization Options
We understand that every network infrastructure has unique requirements. The following customization options are available for MPO-ST breakout cable fiber optic assemblies:
Cable Length Configuration
Trunk lengths from 1m to 100m; breakout leg lengths from 0.3m to 5m; specify exact dimensions for rack and cabinet layouts
Fiber Type Selection
OM3 (300MHz·km), OM4 (4700MHz·km), OM5 (wide-band multimode), or OS2 single-mode (9/125µm) for long-distance applications
Fiber Count Options
8-fiber, 12-fiber, or 24-fiber configurations; other counts available for specialized applications
Connector Variations
MPO with or without guide pins; female or male; key up or key down orientation; ST, SC, LC, or FC terminations on breakout legs
Polish Type
UPC (Ultra Physical Contact) standard; APC (Angled Physical Contact, 8°) available for single-mode versions requiring higher return loss
Jacket Materials
LSZH (low smoke zero halogen) for general indoor use; OFNP (plenum-rated) for air-handling spaces; OFNR (riser-rated); PVC for cost-sensitive applications; outdoor-rated armored jackets with UV resistance
Color Coding
Standard TIA-598C colors (Aqua for OM4, Orange for OM2/OM3, Yellow for OS2); custom jacket colors for network identification; color-coded breakout legs matching fiber position
Labeling & Marking
Custom cable tags with circuit IDs, location codes, or asset numbers; sequential numbering on breakout legs; facility-specific labeling schemes
Breakout Configuration
Furcation tube diameter options (900µm or 2.0mm); breakout boot styles; staggered vs. grouped breakout for cable management; zip-cord style dual-fiber breakout
