In data center network design, the selection of optical fiber cabling is governed by two primary constraints: transmission rate requirements and channel reach. While single-mode fiber (SMF) offers extensive reach suitable for campus and WAN applications, multimode fiber (MMF) remains the predominant medium for short-reach intra-data center connectivity due to the lower cost of VCSEL-based transceivers.
However, multimode fiber is subject to strict distance limitations resulting from optical physics. As Ethernet standards evolve from 10GBASE-SR to 40GBASE-SR4 and 100GBASE-SR4, the allowable channel length decreases significantly. Understanding the multimode fiber distance limit for each optical mode (OM) category is essential for ensuring physical layer compliance and signal integrity.
This article analyzes the technical specifications, bandwidth capabilities, and maximum distance for multimode fiber classifications ranging from OM1 to OM5.
Physical Constraints on Multimode Transmission
The distance limitations in multimode optical systems are primarily caused by two factors: Chromatic Dispersion andAttenuation (optical power loss).
Modal Dispersion and Intersymbol Interference
Unlike single-mode fiber, which propagates a single light mode, multimode fiber features a larger core diameter (50µm or 62.5µm) that supports hundreds of propagation modes.

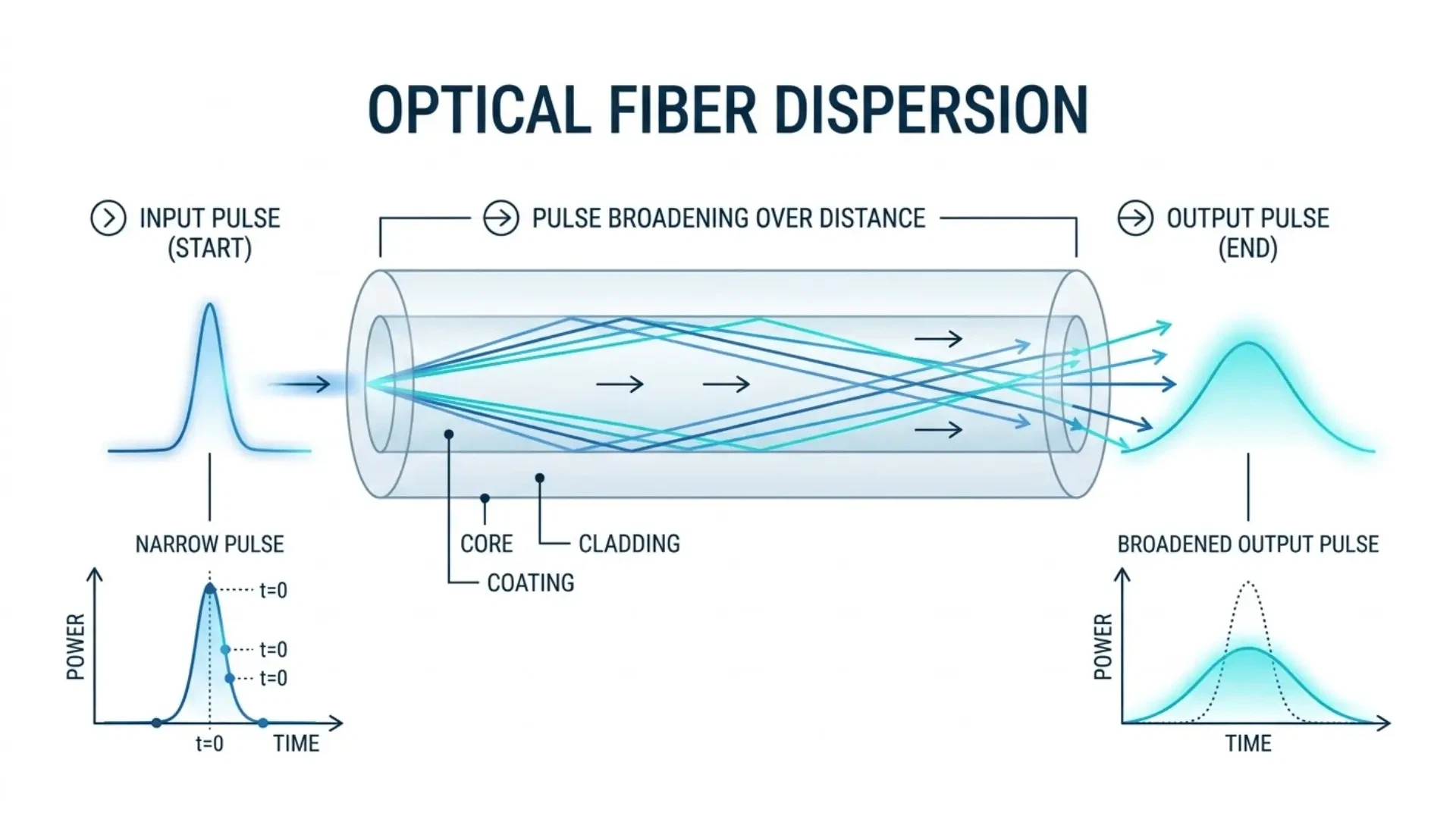

When a light pulse is launched into the fiber, different modes travel distinct path lengths. High-order modes (traveling near the cladding) take a longer path than low-order modes (traveling near the axis). This phenomenon, known as Differential Mode Delay (DMD), causes the optical pulse to spread out over time.
As transmission rates increase, the interval between bits decreases. Excessive pulse spreading results in Intersymbol Interference (ISI), where adjacent bits overlap, rendering the signal unreadable by the receiver. This necessitates shorter cable lengths to maintain an acceptable Bit Error Rate (BER).
Bandwidth-Distance Product
The performance of multimode cabling is quantified by its Effective Modal Bandwidth (EMB), measured in MHz·km.
Overfilled Launch (OFL): Used for measuring bandwidth with LED sources (OM1/OM2).
Laser Optimized (EMB): Used for measuring bandwidth with VCSEL sources (OM3/OM4/OM5).
A higher EMB value indicates a capability to transmit data over a longer distance before modal dispersion degrades the signal.
Technical Specifications by Fiber Type
The Telecommunications Industry Association (TIA) and ISO/IEC define five grades of multimode fiber. Each generation is defined by its core diameter, light source optimization, and bandwidth capacity.
OM1 and OM2 (Legacy Standards)
OM1 and OM2 fibers were designed for Fast Ethernet and Gigabit Ethernet applications utilizing LED light sources.
OM1 (62.5/125 µm):
Jacket Color: Orange.
Bandwidth: 200 MHz·km (at 850nm).
Distance Limitation: Capable of 275 meters at 1 Gbps. At 10 Gbps, the multimode fiber distance limit drops to 33 meters, rendering it unsuitable for modern topology.
OM2 (50/125 µm):
Jacket Color: Orange.
Bandwidth: 500 MHz·km (at 850nm).
Distance Limitation: Capable of 550 meters at 1 Gbps but restricted to 82 meters at 10 Gbps.
Note: OM1 and OM2 are widely considered obsolete for new installations requiring rates above 1 Gbps.
OM3 (Laser-Optimized 50 µm)
OM3 marked the transition to Vertical-Cavity Surface-Emitting Laser (VCSEL) optimization. It is the entry-level standard for 10 Gigabit Ethernet.
Jacket Color: Aqua.
Effective Modal Bandwidth (EMB): 2000 MHz·km.
Application: OM3 supports 10GBASE-SR up to 300 meters. For high-speed parallel optics (40GBASE-SR4 and 100GBASE-SR4), the max length of multimode fiber is limited to 100 meters.
OM4 (High-Bandwidth Laser-Optimized 50 µm)
OM4 provides a higher bandwidth specification than OM3, reducing differential mode delay. This allows for extended reach and higher insertion loss margins.
Jacket Color: Aqua or Violet (Erika Violet).
Effective Modal Bandwidth (EMB): 4700 MHz·km.
Application: OM4 extends 10GBASE-SR reach to 550 meters. Critically for data center backbones, it supports 40G/100G applications up to 150 meters.
OM5 (Wideband Multimode Fiber)
OM5 is specified by TIA-492AAAE and is designed to support Short Wave Division Multiplexing (SWDM).
Jacket Color: Lime Green.
Technical Characteristic: Unlike OM3/OM4, which are optimized primarily for 850nm, OM5 is specified for a wide range of wavelengths between 850nm and 953nm.
Distance Specification: For standard IEEE 802.3 transceivers (using a single wavelength at 850nm), OM5 offers the same maximum distance for multimode fiber as OM4. Its advantage is realized only when using SWDM4 transceivers to transmit multiple signals over a single fiber pair.
Distance Limit Reference Table
The following table summarizes the fiber optic cable max length supported by standard IEEE 802.3 Ethernet applications.
|
Fiber Category |
100 Mbps (Fast Ethernet) |
1 Gbps (1000BASE-SX) |
10 Gbps (10GBASE-SR) |
40 Gbps (40GBASE-SR4) |
100 Gbps (100GBASE-SR4) |
|
OM1 |
2000 m |
275 m |
33 m |
Not Supported |
Not Supported |
|
OM2 |
2000 m |
550 m |
82 m |
Not Supported |
Not Supported |
|
OM3 |
2000 m |
550 m |
300 m |
100 m |
70 m |
|
OM4 |
2000 m |
550 m |
550 m |
150 m |
100 m |
|
OM5 |
2000 m |
550 m |
550 m |
150 m |
100 m |
Engineering Considerations for Maximum Distance
Achieving the theoretical max distance of multimode fiber requires strict adherence to link loss budgets. The physical cable is only one component of the channel; insertion loss from interconnect points significantly impacts achievable reach.
Channel Insertion Loss Budgets
As data rates increase, the allowable optical loss budget decreases.
10GBASE-SR (OM3): Approx. 2.6 dB budget.
40GBASE-SR4 (OM3): Approx. 1.9 dB budget.
If a structured cabling link includes multiple patch panels, cassettes, or cross-connects, the total insertion loss may exceed the transceiver's sensitivity threshold before the maximum cable length is reached. Engineers must calculate the total loss using the formula:
Link Loss = (Cable Length × dB/km) + (Connector Pairs × Loss/pair)
Using Ultra-Low Loss (ULL) MTP/MPO connectors (typically <0.35 dB) is often required to support maximum distance runs in 40G/100G architectures.
Transceiver Variance (Standard vs. Extended Reach)
The distances listed in the table above refer to standard IEEE specifications. However, "Extended Reach" (eSR4/CSR4) transceivers exist in the market.
Standard 100G-SR4 on OM4: 100 meters.
Proprietary 100G-eSR4 on OM4: Up to 300 meters.
These non-standard optics utilize higher transmit power or more sensitive receivers to overcome the multimode fiber distance limit. Compatibility must be verified with the switch manufacturer.
Cabling Selection Criteria
When designing physical layer infrastructure, the following thresholds serve as standard selection guides:
Reach < 100 Meters: OM3 provides sufficient bandwidth for 10G, 40G, and 100G. It is the most cost-efficient solution for intra-rack and Top-of-Rack (ToR) to End-of-Row (EoR) connections.
Reach 100 - 150 Meters: OM4 is mandatory to support 40G/100G transmission rates. OM3 is insufficient for these distances under standard SR4 protocols.
Reach > 150 Meters: For links exceeding 150 meters, Single-Mode Fiber (OS2) is the recommended technical standard. While multimode fiber is physically capable of transmitting 1G or 10G over longer distances, it cannot support migration to 40G/100G beyond the 150-meter limit. Deploying Single-Mode Fiber ensures future compatibility with PSM4 or DR4 architectures.
Conclusion
The multimode fiber distance limit is a function of the cable's Effective Modal Bandwidth and the transmission rate of the active equipment. While legacy OM1 and OM2 fibers are obsolete for high-speed networks, OM3 and OM4 remain the industry standard for short-reach data center applications.
For network planners, the critical demarcation point is 150 meters. Below this threshold, OM4 offers the optimal balance of performance and transceiver cost. Beyond this threshold, Single-Mode Fiber (OS2) is required to ensure signal integrity and protocol support for current and future Ethernet standards.
