Flexible Customization Options
Split Ratio Options
Beyond the standard 1×32 configuration, we manufacture symmetrical splitters from 1×2 to 1×64 and balanced splitters from 2×2 to 2×64. Cascaded split strategies (e.g., 1×4 primary + 1×8 secondary) are commonly deployed in distributed FTTx topologies.
Connector Types

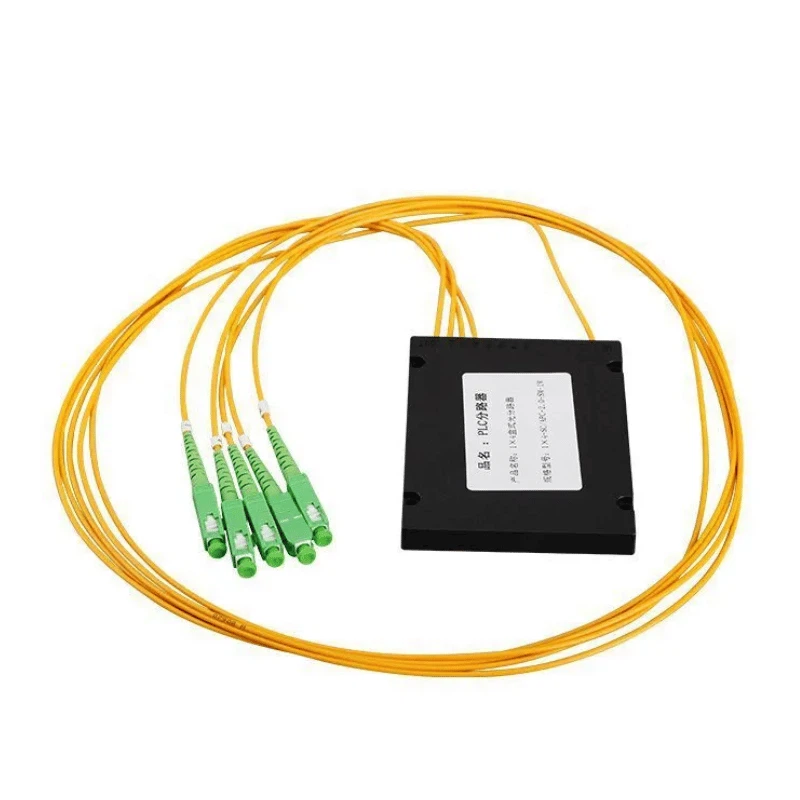

While SC/APC is the default for this model, we offer SC/UPC, LC/APC, LC/UPC, and FC/APC terminations based on your passive infrastructure standards. Connector polish quality is verified with interferometry to ensure <50 dB return loss for APC variants and >50 dB for UPC variants.
Fiber Type Options
Standard production uses G.657A1 bend-insensitive fiber for 2.0 mm diameter cables. For legacy network compatibility or specific deployment requirements, we can substitute G.652D standard singlemode fiber, G.657A2 enhanced bend-insensitive fiber, or other ITU-T compliant fiber types.
Housing Options

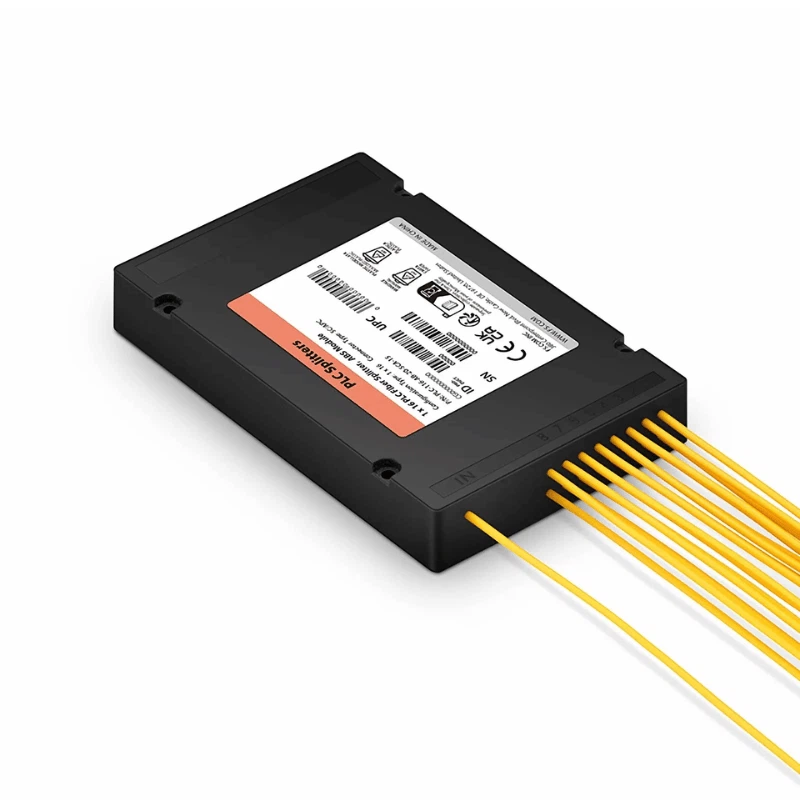

While this model uses a compact ABS box, alternative packaging includes bare fiber fan-out (for splice closure integration), mini-module format (for high-density cassettes), LGX cassette form factor (for telecom standard racks), 1U/2U rack-mount chassis (for equipment room installations), and IP65-rated sealed enclosures (for outdoor pole-mount or street cabinet use).
Technical Specifications
| Split Ratio | 1×32 |
| Operating Wavelength | 1260–1650 nm |
| Insertion Loss | ≤16.9 dB |
| Uniformity | ≤1.5 dB |
| Return Loss | ≥55 dB |
| PDL | ≤0.3 dB |
| WDL | ≤0.5 dB |
| Directivity | ≥55 dB |
| Fiber Type | G.657A1 Singlemode |
| Cable Diameter | 2.0 mm |
| Connector Type | SC/APC |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +85 °C |
| Dimensions | 120×80×18 mm |
Application Scenarios
FTTx and FTTH Access Networks
The primary application for 1×32 splitters is residential and business fiber-to-the-premises access networks. Deployed in street cabinets, building basements, or aerial splice closures, the splitter enables a single OLT PON port to serve up to 32 subscriber locations.
Passive Optical LAN (POL)
Office buildings, hotels, hospitals, and educational campuses deploy POL systems to replace traditional Ethernet switching infrastructure with passive optical distribution. The 1×32 splitter connects centralized optical line terminal equipment to multiple floors, wings, or remote buildings.
Data Center Monitoring
Data center operators install optical splitters in monitoring networks to passively tap traffic for security analysis, performance monitoring, and troubleshooting without disrupting production data flows. A 1×32 splitter can feed monitoring probes and network analyzers.
Campus and MTU Networks
University campuses, industrial parks, and apartment complexes use centralized or distributed splitting to deliver fiber connectivity to dormitories, research labs, tenant office suites, and residential units. A single fiber trunk from the campus core network feeds the splitter.
CATV and RF Video Networks
Cable television operators and broadband service providers use optical splitters to distribute 1550 nm RF video signals across hybrid fiber-coax (HFC) architectures. The splitter feeds multiple fiber nodes or coaxial bridger amplifiers from a central headend.
Industrial Infrastructure
Manufacturing facilities, transportation hubs, and critical infrastructure sites deploy fiber optics for SCADA systems, security camera networks, and operational communications. Optical splitters enable centralized network equipment to monitor and control distributed sensors.
Why Choose DIMI
Proven Technology
DIMI ABS PLC splitters combine proven planar lightwave circuit technology with industrial manufacturing quality to meet the demanding requirements of telecom operators and enterprise networks.
01
Customization
Comprehensive customization capabilities allow us to configure splitters that match exact project specifications, regulatory requirements, and long-term maintenance strategies.
02
Technical Support
Our engineering teams provide ongoing technical support throughout your project lifecycle, from initial design consultation through factory acceptance testing and post-deployment support.
03
Global Experience
Our experience spans metro access networks, rural broadband programs, campus fiber modernization, data center interconnects, and CATV hybrid fiber-coax upgrades worldwide.
04
Ready to Discuss Your Project?
Contact our sales and engineering teams to discuss your project specifications and requirements.
