Dome vs Inline Fiber Optic Splice Closure: Which Fits?

Choosing between a dome and an inline fiber optic splice closure is mainly a cable-routing and installation decision, not a contest over which shape is more waterproof or more durable.

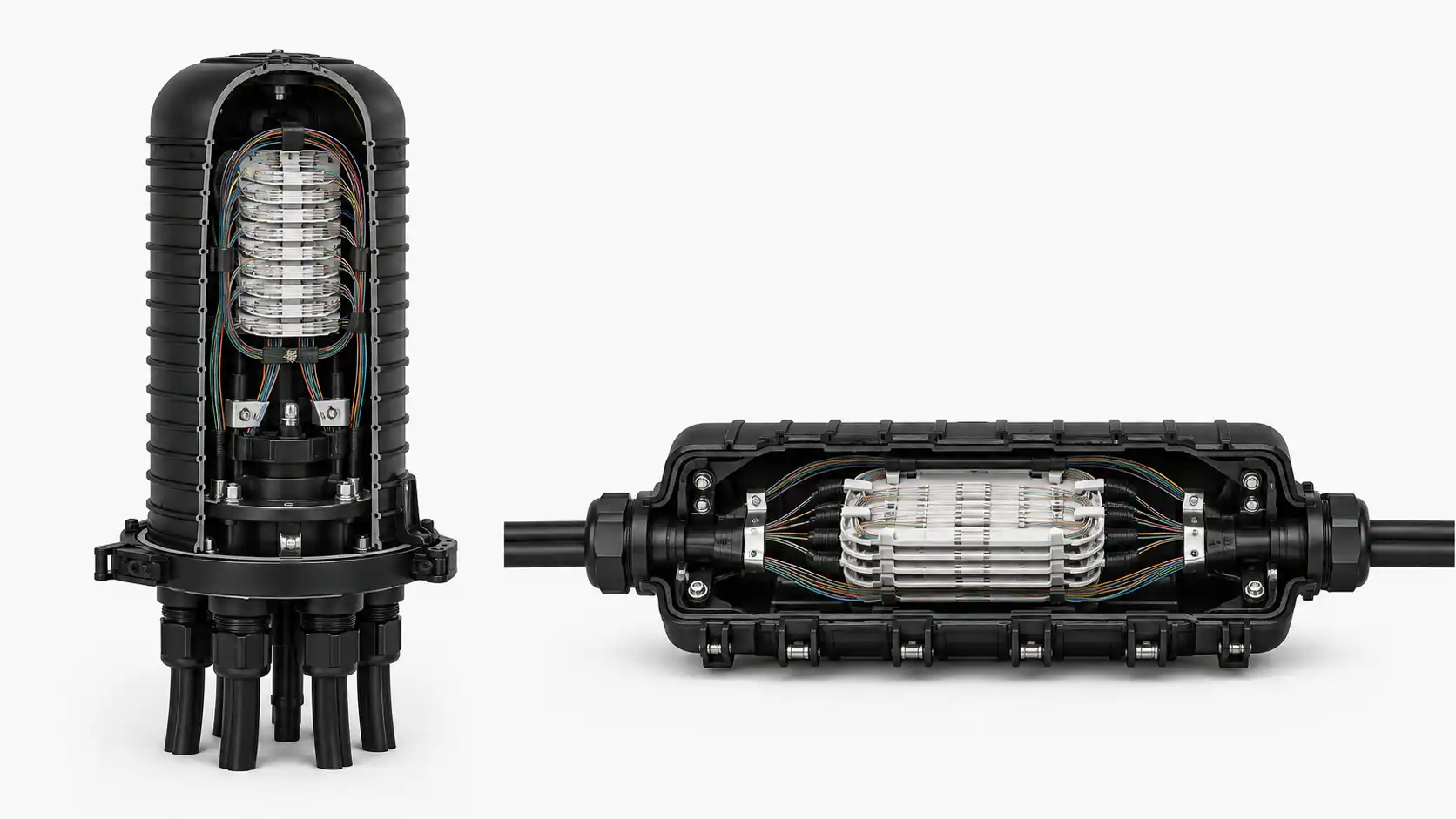

The basic geometry is straightforward. A dome, also called a vertical or butt-style closure, normally concentrates cable entries on one side. An inline, or horizontal, closure places cable-entry positions on opposite sides. Corning's fiber closure selection guidance describes the two formats in these terms and also lists cable count, cable diameter, splice capacity, passed-through fiber storage and spare capacity as separate planning factors.

That distinction matters because body geometry influences how cables approach the splice point, how much room technicians need, and how naturally the closure fits a branch or straight-through route. It does not, by itself, determine sealing method, direct-burial suitability, mid-span capability, re-entry performance or environmental qualification.

If you are comparing available designs, start with the fiber optic splice closure range, then verify the exact configuration against the network rather than selecting by shape alone.

Dome vs Inline Splice Closure

Short answer: choose the body geometry that fits the cable route and available space, then verify ports, cable diameter, splice capacity, sealing, environmental qualification, accessories and maintenance requirements at the product level.

Vertical vs Horizontal Fiber Optic Splice Closure: What Is the Real Difference?

Dome or Vertical Splice Closure

A dome closure has a removable dome-shaped or cylindrical body attached to a base, with cable-entry positions concentrated at that base. This layout can be efficient where a feeder and several branch cables approach the same node, because multiple cables do not need to pass through opposite ends of the enclosure.

Dome designs are therefore often considered for branch points, feeder-to-distribution transitions, handholes, manholes and pole-mounted nodes. Many models also provide stacked splice trays and separate space for slack, buffer tubes and passed-through cable sections.

However, "dome" is only a geometry label. A dome model still needs to be checked for the required cable OD, mounting method, sealing system, re-entry procedure and deployment environment.

Inline or Horizontal Splice Closure

An inline closure has an elongated body with cable entries on opposite sides. The shape naturally follows a route where one cable approaches from one direction and another continues away in the other direction.

This can make an inline design convenient for straight cable repairs, duct routes and shallow spaces where a long, low enclosure is easier to place than a taller body. The same qualification rule still applies: an inline body does not automatically guarantee any particular sealing method, burial rating or maintenance performance.

Dome vs Inline Closure Advantages and Limitations

Dome Closure Advantages

• Efficient layout for several cables converging on one branch or distribution point.
• Same-side entry can reduce the need to route cables across opposite ends of a handhole or manhole.
• Many dome families provide substantial tray stacking and slack-storage space.
• Mid-span access is available on models equipped with an oval or express port.
• Compact horizontal footprint can be useful where vertical clearance is available.

Dome Closure Limitations

• A tall body can be awkward in a shallow handhole.
• Same-side ports may be less natural for a simple cable-to-cable continuation.
• Mid-span capability must be verified; it is not guaranteed by the dome shape.
• Dense tray stacks can become difficult to service if slack and buffer tubes are not organized carefully.

Inline Closure Advantages

• Geometry follows straight-through and opposite-direction cable routes naturally.
• Low-profile bodies can fit well in some shallow handholes and narrow pathways.
• Repair joints can be easier to lay out when each cable remains aligned with its original route.
• Technicians can often understand the cable path quickly because the physical layout mirrors the route.

Inline Closure Limitations

• The longer body requires enough horizontal working length.
• Multiple same-side branch cables may require less intuitive routing than in a branch-oriented dome design.
• Mid-span, re-entry and burial capability still depend on the exact model rather than the horizontal shape.
• Port quantity and cable OD limits can become the real bottleneck even when splice capacity is sufficient.

Factor 1: Start With Cable Routing and Network Topology

Before comparing IP ratings or headline fiber counts, sketch the cable route. Mark the feeder, outgoing distribution cables, branches, repair points and any cable that must remain uncut.

For a straight-through route, an inline closure can reduce unnecessary cable turning because the enclosure follows the path. For a branch point, a dome can be easier to arrange because several cables can enter around the same base.

FTTH architecture adds another question: is the location only a protected fusion-splice point, or will technicians repeatedly connect subscriber drops, access adapters or manage splitters? If connectorized access is the main job, a fiber distribution box may be a better product category. If optical splitting is part of the node, review how the closure or terminal will accommodate the required PLC splitter configuration.

For a broader view of where closures, distribution points and splitters sit in the access network, see the FTTH network design guide.

Factor 2: Measure the Installation Space as a Working Envelope

A closure can fit on paper and still be difficult to install. The usable envelope includes the enclosure body, cable bend radius, service loops, mounting hardware, room to open the housing and enough access to lift or hinge trays without stressing fibers.

A dome may save horizontal area but need more vertical clearance. An inline body may sit comfortably in a shallow enclosure but demand more length. For a handhole or manhole, measure the actual internal dimensions and note existing cables, supports, drainage features and other hardware before specifying the closure.

The maintenance position matters as much as the installed position. If a technician must sharply bend a feeder or remove unrelated hardware every time the closure is opened, the nominally "compact" solution may create higher operating cost over the network life.

Factor 3: Check Fiber Capacity, Trays and Cable Ports Together

A maximum fiber number is only one part of capacity. Two closures labeled 96F or 144F can have very different tray counts, splice-per-tray limits, slack areas and port configurations.

Build the capacity specification around the actual network:

• initial and future splice count;
• number of trays included and maximum tray count;
• splice protector type and tray compatibility;
• space for spare fiber, buffer tubes and repair slack;
• number of feeder, branch and drop cables;
• outer diameter of every cable type;
• unused ports required for future growth;
• strain relief and grounding or bonding requirements where applicable.

A closure with spare tray capacity can still be unusable if the feeder cable is outside the seal's diameter range or if there are not enough compatible ports. In procurement, cable OD and port design should be checked before treating fiber count as the deciding specification.

Factor 4: Verify Mid-Span and Express Access at the Product Level

Mid-span access does not belong exclusively to inline closures. Some dome products include an oval or express port that allows an uncut cable to enter while selected buffer tubes or fibers are accessed. Corning defines an express port as a cable entry that can seal and strain-relieve the cable without cutting the fiber and buffer tubes.

A current manufacturer example is Prysmian's Eagle dome splice closure, which lists an oval port and field-configurable mid-span or express splicing. The example is useful because it shows why "dome versus inline" cannot substitute for checking an actual product configuration.

For a mid-span project, verify the maximum express-cable OD, storage method for the uncut section, allowable buffer-tube routing, branch-port quantity, strain relief and the exact sealing kit required.

Factor 5: Separate Closure Shape From Sealing and Re-Entry

Dome versus inline describes geometry. Mechanical, heat-shrink, gel and gasket systems describe sealing. These are separate decisions.

A mechanical sealing system may use gaskets, compression components, glands, clamps or bolts. Many such designs are intended for repeat access, but the permitted re-entry procedure and replacement parts vary by model.

Heat-shrink cable entries can provide a robust sealed interface when installed according to the manufacturer's procedure. For locations that will be reopened, the RFQ should ask which sleeves, seals or other consumables must be replaced and which tools are required after each access.

Gel and reusable gasket systems can also support serviceable closures, but buyers should compare the actual qualification data and maintenance instructions rather than ranking technologies by material name.

A backbone splice expected to remain untouched for years has a different operating profile from an FTTH distribution node that will be opened as subscribers are added. Re-entry frequency should therefore be an input to closure selection, not an afterthought.

Factor 6: Treat IP68 and GR-771 as Qualification Inputs, Not the Whole Specification

The IP code is defined by IEC 60529, which classifies degrees of protection provided by enclosures. An IP68 marking can be useful, but it does not tell a buyer everything about the tested product configuration, cable-entry setup, mechanical loading, temperature cycling, re-entry performance or project-specific installation requirements.

Ask for the relevant test report and confirm that the tested closure, seals, cable sizes and configuration match what will actually be purchased.

If a North American project specifies Telcordia requirements, GR-771-CORE is titled "Generic Requirements for Fiber Optic Splice Closures" and includes mechanical and environmental requirements and performance tests. Confirm the required issue, test scope and customer-specific acceptance criteria rather than treating "GR-771" as a generic marketing label.

Which Closure Type Fits Common Deployment Scenarios?

Underground Manhole or Handhole

A dome can be convenient where several cables branch from one location and vertical clearance is available. An inline closure may fit better in a shallow handhole or a linear route. The final choice should also account for service loops, drainage, working access and the manufacturer's approved below-grade installation.

Duct or Straight-Through Route

An inline body often follows the cable route cleanly and can be a practical fit for a repair or cable-to-cable continuation. If the route also needs mid-span branching, compare the express-port and internal storage design instead of switching closure type automatically.

Direct Burial

Do not select a direct-burial closure from shape alone. Confirm that the specific product is intended for direct burial and review sealing, cable restraint, mechanical protection, installation procedure and any required test documentation.

Aerial Pole or Messenger Strand

Both dome and inline products can be offered for aerial use. The mounting bracket, cable strain relief, access position, UV/environmental qualification and available clearance should determine whether a particular model is appropriate.

FTTH Distribution or Branch Point

For a splice-only branch, either geometry may work depending on cable routing. For a site with frequent subscriber additions, connectorized drops or integrated splitters, service workflow may matter more than body shape, and a terminal-style product can be preferable.

Three Illustrative Selection Scenarios

The following are illustrative engineering scenarios, not claims about specific field projects.

Scenario 1: Mid-Span Feeder With Several Branch Cables

An uncut feeder passes through a manhole while selected fibers need to feed several distribution cables. A dome with a correctly sized express or oval port can be a strong candidate because the feeder can remain continuous while branch cables use separate ports. The decisive details are express-cable OD, strain relief, storage of the uncut section, branch-port count and tray capacity.

Scenario 2: Repair Joint in a Shallow Handhole

Two cable ends approach from opposite directions and the available space is long but shallow. An inline enclosure may simplify the physical layout. Before approval, check the total closure length, minimum cable bend, seal compatibility, tray access and the space needed to open the housing without stressing either cable.

Scenario 3: Frequently Accessed FTTH Node

The node will be reopened as subscribers are added. In this case, serviceability can outweigh the dome-versus-inline question. Compare tray access, labeling, repeatable sealing, spare ports, consumables and whether technicians need connectors or splitters. If repeated subscriber connection is the primary function, consider a distribution terminal rather than a splice-only closure.

Common Mistakes When Choosing a Splice Closure

• Choosing by fiber count alone: the cable ports, OD range, tray arrangement and slack space may still be wrong.
• Assuming dome means underground: deployment suitability is product-specific.
• Assuming inline is required for mid-span: dome products can support express access when designed for it.
• Treating IP68 as a complete specification: verify the test configuration and other mechanical and environmental requirements.
• Ignoring re-entry until after installation: future maintenance should influence the sealing system and spare-parts plan.
• Comparing body price instead of installed cost: accessories, consumables and labor can change the commercial result.
• Confusing a splice closure with a distribution terminal: connectorized subscriber access may require a different product category.

Frequently Asked Questions

Which is better: a dome or inline fiber optic splice closure?

Neither is universally better. Dome closures often fit branch and same-side cable layouts well, while inline closures naturally follow straight-through and opposite-direction routes. The exact product still has to satisfy space, ports, cable OD, fiber management, sealing, maintenance and environmental requirements.

Can a dome splice closure support mid-span access?

Yes, when the model has an approved express, oval or dedicated mid-span port and enough internal space to manage the uncut cable or buffer tubes. Verify the cable diameter, strain relief, storage method and sealing kit.

Which closure type is better for underground installation?

There is no universal answer based on geometry. A dome can be convenient for branching in a manhole, while an inline body can fit a shallow linear route. The specific closure must be approved for the intended underground or below-grade application.

Is IP68 enough for a fiber splice closure?

No. IP68 is one environmental protection designation. Buyers should also review the tested configuration, cable-entry system, mechanical requirements, temperature range, mounting, re-entry needs and any project-specific standards.

Is a mechanical seal always better than heat-shrink?

No. Mechanical sealing can be attractive where repeat access is expected, while heat-shrink may suit applications where the cable entry is intended to remain more permanent. The better choice depends on the manufacturer's procedure, available tools, replacement consumables and maintenance plan.

How much spare splice capacity should be specified?

There is no universal percentage. Estimate likely branch additions, repair splices and planned upgrades, then reserve enough trays and ports for those scenarios without oversizing the closure unnecessarily.

How This Guide Was Reviewed

This guide separates general selection logic from product-specific claims. Definitions of dome/inline geometry and express ports were checked against Corning's official closure guidance. A dome mid-span example was checked against Prysmian's official Eagle closure information. The IP-code reference was checked against IEC 60529, and the GR-771 title and scope were checked against a current standards listing.

The product-level example uses first-party DIMI product information to show how cable OD, tray capacity, port layout and sealing method should be compared. Buyers should still request current datasheets, installation instructions and test evidence for the exact configuration being quoted.

Final Recommendation

Do not begin with "dome or inline?" Begin with the cable route.

Once the route is clear, measure the available working space, define cable count and OD, specify splice and tray capacity, decide whether mid-span access is required, estimate re-entry frequency and identify the qualification evidence the project requires. Then compare the complete installed configuration and long-term maintenance cost.

A dome closure is often a cleaner physical layout for branching and same-side cable entry. An inline closure is often a cleaner layout for linear, opposite-direction routing. The right choice is the specific closure whose geometry, ports, fiber management, sealing, accessories and qualification match the network.

Before issuing an RFQ, prepare a one-page application sheet showing the cable route, installation environment, cable diameters, fiber count, required ports, expected re-entry frequency and applicable standards. That information will produce a far more useful supplier comparison than requesting an "IP68 144F splice closure" by headline specification alone.
