MTP/MPO cables form the backbone of high-density fiber infrastructure in modern data centers, AI clusters, and campus networks. If you are planning 40G, 100G, 400G, or 800G optical links, you have likely encountered terms like MTP jumper, MPO trunk, Type B polarity, Base-8 cabling, or harness cable - and may be unsure how they relate to each other or which one you actually need to order.
Most guides cover the terminology well but stop short of helping you make a purchasing decision. This article does both. It explains what MTP/MPO cables are, how the main cable types differ, how polarity and fiber count affect compatibility, and - most importantly - how to select the right cable for a specific transceiver, link speed, and physical environment. Where relevant, we reference ANSI/TIA-568 structured cabling standards and IEEE 802.3 Ethernet specifications to keep claims verifiable.
What Are MTP/MPO Cables?
MTP/MPO cables are fiber optic assemblies that use multi-fiber push-on connectors, each carrying 8, 12, 16, or 24 fibers in a single ferrule. Compared with duplex LC or SC patch cords that carry one or two fibers per connector, an MTP/MPO interface consolidates many optical paths into one compact connection point. In real deployments, this translates directly into less cable bulk, faster provisioning, and higher port density per rack unit.
These cables support parallel optical transmission - the method used by transceivers such as 40GBASE-SR4 (8 fibers), 100GBASE-SR4 (8 fibers), and 400GBASE-SR8 (16 fibers) - which is why they are essential in environments where link speed exceeds what a single fiber pair can carry at short wavelengths.
Where MTP/MPO Cables Are Typically Used
You will find MTP/MPO cabling in virtually every modern high-speed fiber environment: leaf-spine data center fabrics, high-performance computing and GPU/AI training clusters, campus and building backbone links, telecom central offices, and structured cabling systems designed for multi-generation speed upgrades. In each case, the core benefit is the same - more fibers through less conduit and tray space, with faster moves, adds, and changes compared to individual duplex patch cords.
MTP vs MPO: What Is the Difference and When Does It Matter?
This is one of the most frequently searched questions in this topic area, and the answer matters more than many buyers realize.
MPO (Multi-fiber Push-On) is the generic connector format defined by international standards including IEC 61754-7. Any manufacturer can produce an MPO-compliant connector. MTP is a registered trademark of US Conec, the company that originally developed the multi-fiber push-on connector family. The MTP connector meets all MPO intermatability standards (TIA-604-5 / IEC 61754-7) but adds several engineering enhancements that affect real-world performance.
Key Engineering Differences
The MTP connector uses elliptical stainless-steel guide pins instead of the flat pins found in generic MPO connectors, which improves fiber-to-fiber alignment accuracy. It also features a floating ferrule mechanism that maintains physical contact under cable strain or thermal expansion - a detail that matters most when the connector is mated directly to a transceiver under load. Additionally, the MTP housing is removable, which allows field technicians to re-polish the ferrule, change connector gender, or adjust polarity without replacing the entire assembly.
In terms of measured performance, standard MTP Elite multimode connectors achieve a typical insertion loss of around 0.10 dB per mated pair with a maximum of 0.35 dB, compared with up to 0.75 dB maximum for generic MPO connectors. That difference may sound small, but it compounds quickly across a multi-connection link. A four-connection spine-to-leaf path using standard MPO connectors at 0.25 dB each consumes 1.0 dB of link budget; the same path using MTP Elite connectors at 0.15 dB each uses only 0.6 dB - leaving significantly more margin for fiber attenuation and future upgrades.
When the MTP vs MPO Choice Actually Matters
For a short, low-connection-count 40G link over OM4 multimode, the performance gap between MTP and generic MPO connectors may not be decisive. But in the following scenarios, specifying MTP-grade connectors is a practical necessity rather than a luxury: 400G and 800G deployments where link budgets are tight (for example, 400GBASE-SR8 specifies roughly 1.9 dB total channel budget); backbone trunks with multiple adapter connections in series; environments requiring frequent reconnections exceeding 300 mating cycles; and single-mode channels where return loss requirements are strict. For a deeper technical comparison, see our MTP vs MPO engineer's selection guide.
MTP/MPO Cable Types: Trunk vs Harness vs Breakout vs Jumper
One of the most common ordering mistakes is buying the wrong cable type for the role it needs to fill. Each MTP/MPO cable type serves a distinct function in a structured cabling system, and understanding the differences prevents costly mismatches.
MTP/MPO Jumper (Patch Cord)
A jumper - also called a patch cord - has an MTP/MPO connector on both ends and is typically used for short, direct connections: transceiver to transceiver, equipment port to patch panel, or switch to switch within the same rack or adjacent racks. Jumpers are the simplest MTP/MPO cable type. In a structured cabling architecture, they connect active equipment to the passive infrastructure. Browse MTP/MPO patch cords for available configurations.
MTP/MPO Trunk Cable

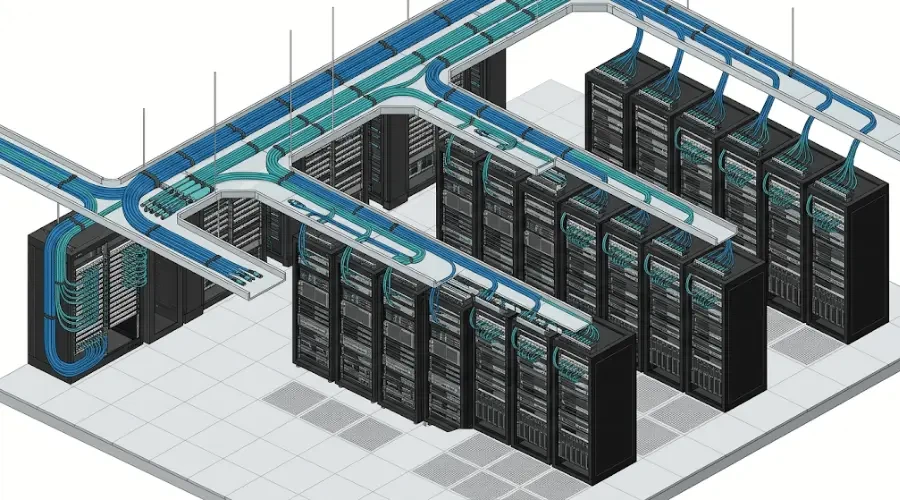

A trunk cable is a multi-fiber backbone assembly with MTP/MPO connectors on both ends, designed to connect patch panels, distribution frames, or cabinets over longer organized routes. Trunks are the workhorse of structured cabling - they carry high fiber counts (often 24, 48, 72, or more fibers) between rows, halls, or buildings. In real data center projects, trunks are typically installed first during the build-out phase and rarely moved afterward. A well-planned trunk infrastructure supports multiple generations of transceiver technology without re-cabling. See our MTP/MPO trunk cable product range for specifications.
MTP/MPO Harness (Fan-Out) Cable
A harness cable has an MTP/MPO connector on one end and multiple duplex connectors - usually LC - on the other end. This cable type bridges the gap between multi-fiber MTP/MPO infrastructure and traditional duplex equipment. A common real-world use case: a 100GBASE-SR4 transceiver connects via an 8-fiber MTP/MPO jumper to a patch panel; on the other side of the panel, a harness cable fans out those 8 fibers to four LC duplex ports, each feeding a 25G server NIC. Harness cables are especially critical during speed migrations when part of the network runs parallel optics and the rest still uses duplex connectivity.
MTP/MPO Breakout Cable
A breakout cable splits one multi-fiber MTP/MPO connection into multiple smaller MTP/MPO groups. For example, a 24-fiber MPO trunk might need to be redistributed as three 8-fiber MTP/MPO connections to match Base-8 transceivers. Breakout cables handle this redistribution without requiring a cassette or panel. They are particularly useful in high-density environments and during transitions between Base-12 and Base-8 architectures. For a detailed comparison and selection guide, see how to choose an MPO breakout cable.
Which Cable Type Should You Order?
| Cable Type | Connectors | Primary Role | Typical Scenario |
|---|---|---|---|
| Jumper (Patch Cord) | MTP/MPO to MTP/MPO | Short direct connections | Switch-to-panel or switch-to-switch in the same rack |
| Trunk | MTP/MPO to MTP/MPO (high count) | Backbone cabling | Cabinet-to-cabinet or row-to-row structured links |
| Harness (Fan-Out) | MTP/MPO to multiple LC/SC duplex | Multi-fiber to duplex transition | 100G SR4 uplink broken out to 4×25G LC server ports |
| Breakout | MTP/MPO to multiple MTP/MPO | Fiber group redistribution | One 24-fiber trunk split into three 8-fiber paths |
For a broader overview of how trunk, breakout, and harness cables work together in a cabling system, see our guide on MPO cable types and how to choose.
How MTP/MPO Cables Are Classified: Fiber Count, Polarity, Mode, and Jacket
After identifying the right cable type, the next step is specifying four key parameters that determine compatibility and performance. Getting any one of these wrong can cause a link failure or a procurement delay.
Fiber Count: Base-8, Base-12, Base-16, and Base-24
Fiber count must match the transceiver architecture, not just the panel density. Here is how common Ethernet standards map to fiber counts:
| Ethernet Standard | Fiber Count (Tx + Rx) | Base Architecture |
|---|---|---|
| 40GBASE-SR4 | 8 fibers (4 Tx + 4 Rx) | Base-8 |
| 100GBASE-SR4 | 8 fibers (4 Tx + 4 Rx) | Base-8 |
| 100GBASE-SR10 | 20 fibers (10 Tx + 10 Rx) | Base-12 (with unused fibers) or Base-24 |
| 400GBASE-SR8 | 16 fibers (8 Tx + 8 Rx) | Base-16 or 2×Base-8 |
| 400GBASE-SR4 | 8 fibers (4 Tx + 4 Rx) | Base-8 |
A common ordering mistake is choosing Base-12 trunks for an environment that will run Base-8 transceivers. In a Base-12 system carrying 8-fiber traffic, four fibers in every connector go unused - wasting 33% of the fiber plant. In real deployments, this mismatch also complicates breakout and patching. The right approach is to determine your primary transceiver type first, then select the base architecture that aligns with it. If you expect a mix of 8-fiber and 12-fiber applications, plan the trunk layer around the dominant use case and handle exceptions at the patch panel with appropriate breakout modules.
Polarity: Type A, Type B, and Type C - Which One Do You Need?
Polarity defines how transmit and receive fiber positions are mapped from one end of a cable to the other. If the polarity is wrong, the transmitter at one end does not reach the receiver at the other - and the link fails even though the connectors physically mate without issue.
The ANSI/TIA-568.3 standard defines three classic polarity methods and, as of the 2022 revision (TIA-568.3-E), two newer universal methods (U1 and U2):
- Type A (Method A): Straight-through trunk cable with a key-up connector on one end and key-down on the other. Requires a Type-A to Type-B duplex patch cord at one end to achieve the Tx-Rx flip.
- Type B (Method B): Fully reversed trunk cable with key-up connectors on both ends. The fiber reversal happens inside the trunk itself, so identical duplex patch cords (A-to-A) can be used at both ends. Type B is the most widely deployed polarity method in modern parallel-optic structured cabling because of this simplicity.
- Type C (Method C): Pairwise crossover, where each adjacent fiber pair is flipped. Less common in practice due to manufacturing complexity and limited advantages over Type B.
- Universal Methods U1 and U2: Introduced in TIA-568.3-E (September 2022), both methods use Type-B trunks and A-to-B duplex patch cords, but differ in array adapter orientation. They simplify deployment by allowing the same components at both ends of a channel - reducing the polarity-related ordering errors that are one of the top causes of installation delays.
For most buyers planning a new structured cabling system with parallel optics, Type B trunks are a safe default. If you are extending or patching into an existing system, you must identify the polarity method already in use before ordering any new cables.
Fiber Mode: OM3, OM4, OM5, and OS2 - Choosing by Distance and Application
Fiber mode selection depends on link distance, wavelength requirements, and long-term migration plans. Here is a practical overview:
| Fiber Type | Category | Typical 400G SR8 Reach | Common Use |
|---|---|---|---|
| OM3 | Multimode 50/125 µm | ~70 m | Budget-sensitive short links; legacy 10G/40G |
| OM4 | Multimode 50/125 µm | ~100 m | Most intra-building data center links; 40G–400G |
| OM5 | Wideband multimode 50/125 µm | ~100 m (supports SWDM) | Short-wavelength WDM applications; future-proofing for SWDM-based 400G SR4.2 |
| OS2 | Single-mode 9/125 µm | 500 m – 10+ km (depending on optics) | Campus backbones, inter-building links, metro/telecom, 400G DR4/FR8/LR8 |
In real purchasing decisions, the most common choice for intra-building data center links is OM4, because it covers 100 m reach at 400G SR8 and supports the full range of multimode parallel-optic transceivers. OS2 single-mode is typically chosen when links exceed 100 m, when the architecture uses CWDM or DWDM transceivers, or when the network plan calls for single-mode throughout for consistency. For a detailed distance and bandwidth comparison, see our OM1–OM5 multimode fiber distance guide and OS1 vs OS2 single-mode fiber comparison.
Jacket Rating: LSZH, OFNP, and OFNR
The cable jacket determines where the cable can legally and safely be installed. This is not a performance parameter - it is a building code compliance parameter, and getting it wrong can void insurance or fail inspection.
- OFNP (Plenum): Required for cables routed through plenum airspaces - the spaces above drop ceilings or below raised floors used for air circulation. Plenum-rated cables use fire-retardant materials that produce less smoke and toxic fumes.
- OFNR (Riser): Required for vertical cable runs between floors. Riser-rated cables resist flame propagation along their length but are not rated for plenum spaces.
- LSZH (Low Smoke Zero Halogen): Common in European and international installations, as well as enclosed environments like tunnels and ships, where halogen-free materials are required to limit toxic gas emission in a fire.
A cable that is optically correct and has the right polarity can still be rejected by an inspector if the jacket rating does not match the installation environment. Always confirm local code requirements before finalizing a cable order.
How to Choose the Right MTP/MPO Cable for 40G, 100G, 400G, or 800G
Instead of trying to memorize every specification, use this five-step decision process. In real procurement workflows, this sequence prevents the most common selection errors.
Step 1: Identify Your Transceiver and Link Speed
Start with the hardware your network design has already specified. The transceiver model dictates fiber count, wavelength, connector type, and maximum reach. For example, a 400GBASE-SR8 QSFP-DD transceiver requires 16 fibers over multimode fiber with an MPO-16 APC interface and supports up to 100 m on OM4. A 400GBASE-DR4 QSFP-DD requires 8 single-mode fibers with a reach of 500 m. These are fundamentally different cable requirements driven by the same "400G" label, which is why starting with the specific transceiver model matters more than starting with the speed number alone.
Step 2: Match the Fiber Count to Your Base Architecture
Once the transceiver is known, the required fiber count follows directly. The table in the fiber count section above maps common Ethernet standards to their base architectures. Do not default to the highest available fiber count. A 24-fiber trunk is not "better" than an 8-fiber trunk - it is a different infrastructure choice that makes sense only if your patching plan, breakout modules, and transceiver mix are designed around it.
Step 3: Verify Polarity and Connector Gender
This is the step where the most ordering errors occur, especially on first-time MTP/MPO deployments. Confirm three things before placing an order: the polarity method (Type A, B, C, or Universal), the connector gender at each end (male/pinned or female/unpinned), and the key orientation expected by your patch panels or cassettes. The standard rule is that one mating connector must be pinned (male) and the other unpinned (female). Since most active equipment ports are pinned, the patch cord connecting to the equipment port should be unpinned on the equipment-facing end.
Step 4: Select Fiber Mode Based on Distance and Optics
For links under 100 m using multimode transceivers, OM4 is the most common and safest default in current data center deployments. For links beyond 100 m, or when using single-mode transceivers (DR4, FR8, LR8), specify OS2. Also consider your organization's long-term infrastructure strategy: some operators install single-mode throughout even for short links, accepting higher transceiver cost in exchange for a fiber plant that never needs to be replaced as speeds increase.
Step 5: Confirm Jacket Rating for the Physical Environment
Before finalizing the order, verify whether the cable path requires plenum, riser, or LSZH rating. This is easy to overlook during early design phases when the focus is on optics and architecture, but it becomes a blocking issue at installation time if the cable fails to meet building codes.
Common MTP/MPO Deployment Scenarios
To illustrate how these choices come together, here are three deployment patterns frequently seen in production environments.
Direct Switch-to-Switch Link (Leaf-Spine Fabric)
In a leaf-spine data center fabric, each leaf switch connects to every spine switch. If both switches use 100GBASE-SR4 transceivers, the link requires a single 8-fiber OM4 MTP/MPO jumper with Type B polarity - one end male, the other female. This is the simplest MTP/MPO deployment: one cable, no panels, no breakouts. It works well for small-to-mid-size fabrics where the rack layout keeps spine-to-leaf distances short.
Structured Cabling with Patch Panels
In larger environments, the connection is built through panels for scalability and manageability. A typical structured path looks like this: equipment connects via MTP/MPO jumpers to a local patch panel; a trunk cable runs from that panel to a remote panel in another cabinet or row; the remote panel connects to equipment via another jumper or via a harness cable that fans out to LC duplex ports. This architecture adds adapter connections, so insertion loss budget becomes more important - another reason to specify MTP-grade connectors for the trunk layer.
400G-to-4×100G Breakout
A 400GBASE-SR8 transceiver (16 fibers) can be broken out to four 100GBASE-SR4 links (8 fibers each) using a 2×MPO-8 to 1×MPO-16 breakout cable. This pattern is common in environments where a 400G spine port feeds multiple 100G leaf switches. The breakout cable handles the fiber redistribution, and each downstream 100G link gets its own 8-fiber path. Getting the polarity and pin mapping correct on the breakout cable is critical - always verify with the transceiver vendor's application note or breakout cable product specifications before ordering.
Common MTP/MPO Mistakes and How to Avoid Them
Even experienced cabling teams encounter these issues. Knowing them in advance saves time and money.
Mismatching Male and Female Connectors
An MTP/MPO connection requires one pinned (male) and one unpinned (female) connector. If both ends are the same gender, the fibers will not align and the link will show high loss or no signal. Always verify gender at each end before ordering, especially when assembling a mixed system from multiple vendors.
Choosing the Wrong Polarity for the System
Polarity errors are one of the top causes of MTP/MPO installation delays. A Type A trunk does not work in a Type B system without changing the patch cords on both ends. When extending an existing system, identify the polarity method already deployed and match it exactly. When building new, standardize on one polarity method across the entire installation.
Selecting Fiber Mode Without Checking Transceiver Compatibility
Do not choose OM3, OM4, OM5, or OS2 based on habit or bulk pricing. The transceiver datasheet specifies which fiber types are supported and at what distance. For instance, 400GBASE-SR8 supports 70 m on OM3 but 100 m on OM4 - a 30% reach difference that could matter in a large data hall.
Ignoring Base Architecture Alignment
Installing Base-12 trunks for a Base-8 transceiver environment wastes one-third of your fiber and creates breakout complications. Conversely, installing only Base-8 in an environment that still uses legacy 10G-SR (which uses 2 fibers from a 12-fiber MPO) leads to different problems. Plan the base architecture around your primary and near-future transceiver mix, not around whatever is cheapest per meter.
Overlooking Jacket Rating Requirements
A cable with the right optics, polarity, and fiber count can still fail inspection if it has the wrong jacket rating. Confirm plenum, riser, or LSZH requirements during the design phase - not after the cable has been pulled through the tray.
Frequently Asked Questions About MTP/MPO Cables
Are MTP and MPO connectors the same thing?
Not exactly. MPO is the generic multi-fiber connector format standardized under IEC 61754-7. MTP is a premium version of the MPO connector manufactured by US Conec, with tighter mechanical tolerances, a floating ferrule, and removable housing. All MTP connectors are MPO-compatible, but not all MPO connectors meet MTP performance specifications.
Which polarity type is most commonly used for parallel optics?
Type B is the most widely deployed polarity method for parallel-optic structured cabling because it reverses all fiber positions inside the trunk, allowing identical patch cords on both ends. The newer Universal methods (U1/U2) introduced in ANSI/TIA-568.3-E (2022) also build on Type B trunk cables and further simplify component selection.
Should I choose Base-8 or Base-12 for a new installation?
It depends on your transceiver mix. If your primary applications are 40GBASE-SR4, 100GBASE-SR4, or 400GBASE-SR4 - all of which use 8 fibers - then Base-8 avoids wasted fibers and simplifies breakouts. If you need backward compatibility with legacy 10G-SR (2 fibers from a 12-fiber MPO) or your environment uses 100GBASE-SR10 (20 fibers), Base-12 may be more practical. Many new greenfield data centers are standardizing on Base-8.
Can MTP/MPO cables support 400G and 800G Ethernet?
Yes. The IEEE 802.3cm standard defines 400GBASE-SR8, which uses 16 multimode fibers over an MPO-16 connector, and 400GBASE-SR4.2, which uses 8 fibers with two wavelengths. The IEEE 802.3db standard adds 400GBASE-SR4 using 8 fibers at 100G per lane. For single-mode 400G (DR4, FR8, LR8), 8-fiber or fiber-pair MTP/MPO assemblies are used. 800G standards under IEEE 802.3df continue to rely on MPO-based multi-fiber interfaces.
How do I decide between OM4 and OS2?
Start with distance and transceiver type. For short-reach multimode applications up to approximately 100 m (the typical intra-building data center range), OM4 paired with SR-type transceivers is the standard choice. For links exceeding 100 m, inter-building connections, or architectures that use DR4/FR8/LR8 transceivers, OS2 single-mode is required. Some organizations install OS2 throughout for uniformity, accepting higher transceiver costs in exchange for a fiber plant with no distance or speed ceiling.
What insertion loss should I expect from an MTP/MPO connection?
For MTP Elite multimode connectors, typical insertion loss is approximately 0.10 dB per mated pair, with a maximum of 0.35 dB. For standard-grade MPO connectors, the maximum can reach 0.60–0.75 dB. Single-mode MTP Elite connectors also target a 0.35 dB maximum. These values are per-connection; total channel loss includes all connector matings, splices, and fiber attenuation over the link distance.
What is the difference between a harness cable and a breakout cable?
A harness cable transitions from MTP/MPO on one end to multiple duplex connectors (typically LC) on the other - bridging multi-fiber infrastructure with duplex equipment. A breakout cable transitions from one MTP/MPO connector to multiple smaller MTP/MPO connectors - redistributing fibers within the multi-fiber domain. Use a harness when you need to fan out to duplex ports; use a breakout when you need to split into smaller MTP/MPO groups.
Do I need to worry about connector cleaning with MTP/MPO cables?
Yes. Contamination is the leading cause of high insertion loss in field installations. Because an MTP/MPO ferrule presents 8, 12, 16, or more fiber end-faces in a single interface, one particle of dust can affect multiple fibers simultaneously. Always inspect and clean both the connector and the adapter before every mating, using a purpose-built MTP/MPO cleaning tool. A visual inspection scope designed for multi-fiber connectors is essential - do not rely on cleaning alone without visual confirmation.
